Portable Gantry Crane Weight Capacity: How Much Can You Safely Lift?
Introduction: How Much Weight Can a Portable Gantry Crane Lift?
If you are shopping for lifting equipment, how much weight can a portable gantry crane lift is likely your first and most important question. The answer depends on multiple factors, but here is the quick overview: portable gantry cranes typically lift between 0.3 tons and 20 tons for custom heavy-duty models, with standard portable units ranging from 0.5 to 5 tons . But how much weight can a portable gantry crane lift in your specific application requires careful calculation. This complete load capacity guide will help you determine how much weight can a portable gantry crane lift for your workshop, warehouse, or job site.
Standard Portable Gantry Crane Weight Capacities
How much weight can a portable gantry crane lift depends on the crane's design, materials, and configuration. Here are the most common capacity tiers available on the market:
Many portable gantry cranes offer capacities from 125 kg up to 5,000 kg (5 tons) as standard, with custom configurations reaching 20 tons or more .
The 4-Step Formula to Determine How Much Weight You Need
To accurately answer how much weight can a portable gantry crane lift for your operation, follow this four-step sizing method :
Step 1: Identify your heaviest realistic load. Not your typical load—the heaviest single item you might need to lift over the equipment's lifetime .
Step 2: Add rigging hardware weight. Spreader beams, chains, slings, shackles, and any below-the-hook attachments all count against rated capacity. A 300 lb spreader beam on a 4,400 lb rated gantry leaves only 4,100 lb for the load itself .
Step 3: Add a 20–30% safety margin. This covers dynamic loading during lifts, future applications, and a safety buffer. If your total lands between two capacity tiers, pick the higher one .
Step 4: Size up, never down. The incremental cost of a higher capacity crane is small; the cost of being undersized compounds over years of rentals and lost productivity .
Rated Capacity vs. Actual Payload: A Critical Distinction
When asking how much weight can a portable gantry crane lift, understand that rated capacity is not the same as payload weight. A "5-ton portable gantry crane" is rated to handle 10,000 lb of total load at the hook—which includes not just the item you are lifting but every piece of hardware between the hook and that item .
What counts against rated capacity:
The load itself
Rigging hardware: spreader beams, shackles, hooks, eye bolts
Chains, slings, or wire rope
Material Matters: Aluminum vs. Steel
How much weight can a portable gantry crane lift also depends on material. Aluminum portable gantries are lightweight and corrosion-resistant, typically rated up to 5–10 tons . Steel portable gantries can handle heavier loads but are significantly heavier to move and set up. Aluminum is the preferred material for most portable applications because it balances portability with load capacity .
Capacity-by-Application Guide
How much weight can a portable gantry crane lift for your specific job? Here is a quick reference :
500 kg: Small submersible pumps, light HVAC components, small machining fixtures
1 ton: Mid-sized pumps, commercial HVAC compressors, standard electric motors—a common default for general industrial maintenance
2 tons: Wastewater pumps, commercial chillers, medium industrial motors—the most popular capacity for maintenance shops
3 tons: Heavier wastewater pumps, mid-sized industrial machinery sections
5 tons: Data center switchgear, transformers, manufacturing-line components
10 tons: Large transformers, heavy machinery, plant relocations
Common Sizing Mistakes to Avoid
When determining how much weight can a portable gantry crane lift for your needs, avoid these errors :
Mistake 1: Sizing for typical load, not heaviest load. A shop that lifts 2,000 lb loads 90% of the time but occasionally needs 8,000 lb will outgrow a 4,400 lb gantry quickly.
Mistake 2: Ignoring rigging hardware. Rigging can consume 10% or more of rated capacity on smaller gantries.
Mistake 3: Sizing exactly at load weight. A 2,000 lb payload with 200 lb of rigging = 2,200 lb on a 2,200 lb rated gantry means zero margin.
Mistake 4: Under-specifying to save purchase cost. Working around an undersized gantry for 15–20 years costs far more than the initial upgrade .
Conclusion: How Much Weight Can a Portable Gantry Crane Lift for Your Operation?

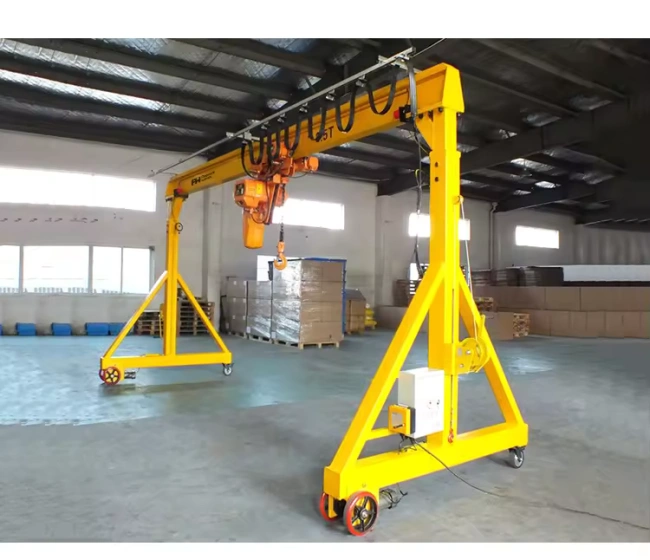

To determine how much weight can a portable gantry crane lift for your specific needs, calculate your heaviest load plus rigging, add a 20–30% safety margin, and select the next higher standard capacity tier. For most industrial maintenance applications, a 1-ton to 3-ton portable gantry crane covers the majority of daily lifting needs . If your heaviest lifts exceed 5 tons, consider a 10-ton model or explore custom configurations. Still unsure how much weight can a portable gantry crane lift for your operation? Consult with reputable manufacturers who can assess your load requirements, workspace, and future needs to recommend the optimal capacity.
