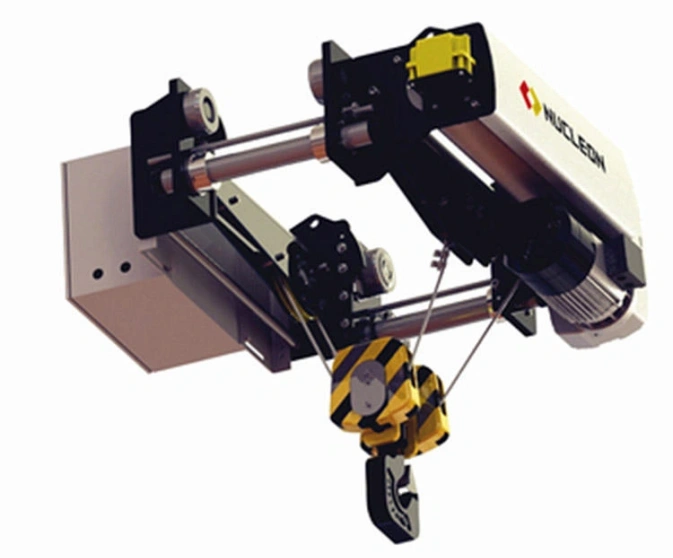

Low headroom European-style electric wire rope hoist

Authentication mark:

This hoist is mainly used in low-ceiling manufacturing plants, warehouse retrofitting projects, and assembly lines with limited overhead space.

Capacity:

1to 20 tons

Lifting Height:

1-32M

Span:

Voltage/Hertz:

380V 50HZ

Working Class:

M4-M6

Get A Free Quote

Introduction

Application Scenario

Advantages

Structural Diagram And Parameter Table

INTRODUCTION

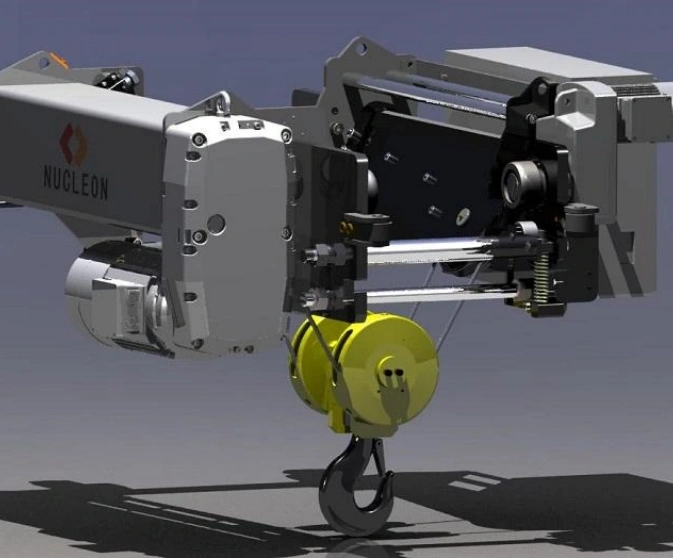

The low headroom European-style electric wire rope hoist is a compact, high-performance lifting unit designed for applications where vertical space is limited. It features an optimized rope reeving system and a flat, low-profile hoist body that reduces the distance between the hook and the runway. Lifting capacities typically range from 1t to 20t, with lift heights up to 30m and hoist speeds controlled by frequency inverters. This hoist is widely used in single-girder or double-girder overhead cranes, offering maximum hook lift within low-ceiling workshops.

APPLICATION SCENARIO

[1] Low-ceiling workshops – Maximizing effective lifting height where roof trusses or ducts restrict space. [2] Retrofitting old plants – Replacing old hoists to gain extra hook height without building modification. [3] Assembly lines with overhead obstacles – Lifting components under mezzanines or existing piping. [4] Warehouses with low clearance – Stacking goods higher using limited top space. [5] Maintenance areas under overhead cranes – Servicing machinery without hitting the crane bridge.

ADVANTAGES

[1] Low headroom design – Adds 200‑500mm extra lifting height compared to standard hoists. [2] High efficiency – European helical gear motor with low energy consumption. [3] Precise control – Frequency inverter standard for smooth acceleration and positioning. [4] Compact and lightweight – Reduces crane dead weight and wheel load. [5] Long service life – Wire rope with multiple falls, wear‑resistant drum and high‑grade bearings.

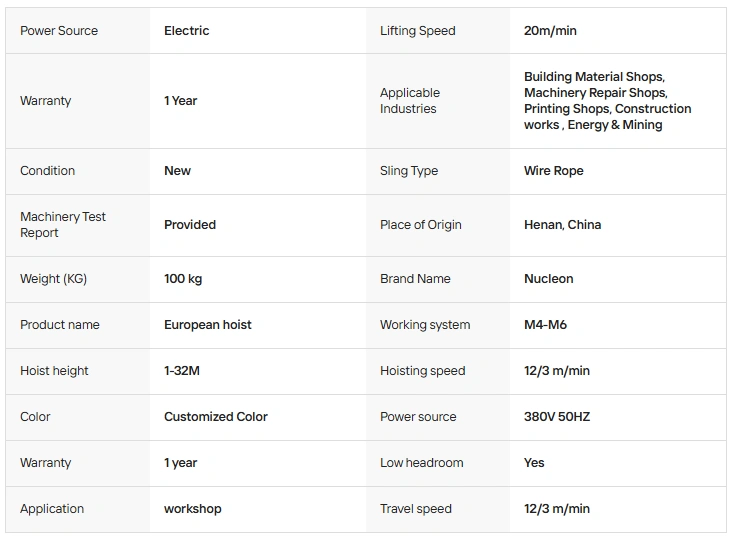

STRUCTURAL DIAGRAM AND PARAMETER TABLE

Six core advantages

Full Scenario Coverage

Nucleon covers over 20 product categories including ladle cranes, multi-purpose cranes, intelligent cranes, overhead/portal cranes, RTG, RMG, deck cranes, portal cranes, girder launchers, yacht cranes, KBK, and jib cranes. From steel smelting to port handling, bridge construction to ship equipment, Nucleon provides one-stop lifting solutions. Whether standard models or extreme-condition customizations, Nucleon possesses mature technical expertise and proven track records, saving customers from dealing with multiple suppliers.

Military-Grade Quality Standards

We use high-strength steel from Baosteel/Ansteel for key structural components, with 100% NDT inspection and one-clamp CNC gantry machining. Every machine undergoes 120% dynamic load and 125% static load tests before delivery, with continuous operation verification under extreme conditions. Even in 24/7 continuous casting plants, -40°C arctic ports, or high-temperature humid ship cabins, our cranes maintain millimeter-level precision and zero-drift stability—quality that stands the test of time.

Extended Longevity & Low Maintenance Cost

Our main girders are FEA-optimized and double-submerged arc welded, with a design life of ≥30 years. Key bearings are lifetime lubrication-free, and hardened travel wheels extend wear cycles by 3 times. Core components feature modular quick-change interfaces with spare parts commonality exceeding 80%. Annual maintenance costs are reduced by 40%~60%, saving millions in lifecycle operating expenses — truly "invest once, benefit long-term."

Energy Efficiency Leader

Our entire series comes standard with IE5 permanent magnet synchronous motors + energy feedback VFD drives, achieving 25%~35% comprehensive energy savings. Single-motor operation under light loads and adaptive speed control reduce electrical waste by over 30%. High-strength steel lightweight design cuts deadweight by 15%~20%, lowering workshop load requirements. A single ladle crane station saves over RMB 150,000 in electricity costs annually, helping customers achieve green and low-carbon production.

Ultimate Safety Redundancy Design

Our hoisting mechanism comes standard with dual brakes + mechanical overspeed switch + triple limit switches, featuring multiple redundant interlocks to prevent load dropping and over-traveling. Large products use box girder torsion-resistant structures, remaining stable even in level 8 gusty winds. Optional intelligent safety monitoring systems detect anomalies in load, skew, wind speed, etc., with automatic alarms and shutdowns. Overall safety redundancy coefficient > 2.0, maintaining zero crane safety incidents for many consecutive years.

Deep Customization & Full Lifecycle Service

We provide complete front-end support from site survey and mechanical simulation to civil review, delivering custom drawings within 2 weeks, with non-standard lead times only 5~7 days longer than standard products. We establish lifelong digital dossiers for customers, warning of end-of-life components 3 months in advance. Our full lifecycle services cover installation training, regular inspections, and remote O&M. With customer repeat purchase rates exceeding 85% for five consecutive years, we are a trustworthy long-term partner.
