JIB CRANE

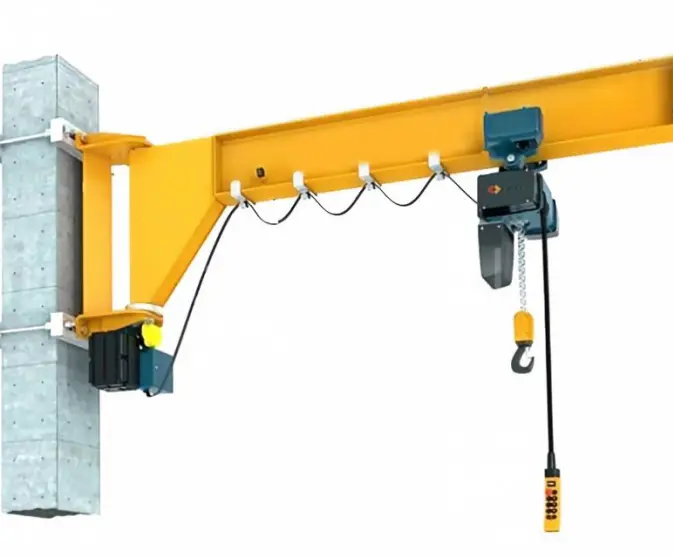

Wall-Mounted Jib Crane

Authentication mark:

Warehouses & Logistics Hubs Manufacturing Workshops & Assembly Lines Production Facilities & Machine Shops

Capacity:

0.5 t – 10 t customizable

Lifting Height:

3 m – 30 m (customizable based on building clearance)

Span:

2 m – 8 m (radius from wall to hook center, customizable)

Voltage/Hertz:

customizable

Working Class:

A3, A4, A5 customizable

Get A Free Quote

Introduction

Application Scenario

Advantages

Structural Diagram And Parameter Table

INTRODUCTION

A space-saving, cost-effective lifting solution directly mounted to vertical walls or structural columns. Features a 120°–360° rotation range for precise localized load handling without taking up floor space.

APPLICATION SCENARIO

[1] Assembly Lines – Lifting and positioning components onto workstations with electric hoist for repetitive tasks.

[2] Loading Bays – Assisting in loading/unloading heavy goods from trucks near the bay door.

[3] Machine Shops – Serving individual lathes, mills, or presses with dedicated lifting coverage.

[4] Warehouses – Moving heavy items from shelves or pallets along the wall.

[5] Maintenance Areas – Hoisting motors, pumps, or spare parts for repair.

ADVANTAGES

[1] Space-Saving – No floor‑standing column, frees up valuable floor space.

[2] Electric Hoist Efficiency – Faster lifting and lowering compared to manual chain hoists.

[3] Smooth Rotation – Electric or manual rotation up to 180° or 360° depending on model.

[4] Easy Installation – Mounts directly to existing building columns or reinforced walls.

[5] Low Maintenance – Sealed electric hoist and durable bearings reduce downtime.

STRUCTURAL DIAGRAM AND PARAMETER TABLE

Parameter	Specification
Working Class	A3, A4, A5 customizable
Capacity	0.5 t – 10 t customizable
Span / Radius	2 m – 8 m (radius from wall to hook center, customizable)
Lifting Height	3 m – 30 m (customizable based on building clearance)
Lifting Speed	4 – 10 m/min (single speed) 8 – 20 m/min (dual speed / VVVF optional)
Rotation Angle	180°, 270° (max 300°, limited by wall clearance)
Rotation Speed	Manual: push/pull operation Electric: 0.5 – 1.2 rpm (VVVF optional)
Control Method	Pendant control (standard) / Remote radio control (optional)
Power Supply	380V / 50Hz / 3-phase
Temperature	-10°C to +45°C (indoor general industrial environment)
Protection Grade	Hoist motor: IP44 – IP54, Insulation class F Rotation motor (if electric): IP44 – IP54
Girder Type / Structure	Wall-mounted cantilever – Single cantilever beam fixed to building wall or column, with slewing bearing rotation

Six core advantages

Full Scenario Coverage

Nucleon covers over 20 product categories including ladle cranes, multi-purpose cranes, intelligent cranes, overhead/portal cranes, RTG, RMG, deck cranes, portal cranes, girder launchers, yacht cranes, KBK, and jib cranes. From steel smelting to port handling, bridge construction to ship equipment, Nucleon provides one-stop lifting solutions. Whether standard models or extreme-condition customizations, Nucleon possesses mature technical expertise and proven track records, saving customers from dealing with multiple suppliers.

Military-Grade Quality Standards

We use high-strength steel from Baosteel/Ansteel for key structural components, with 100% NDT inspection and one-clamp CNC gantry machining. Every machine undergoes 120% dynamic load and 125% static load tests before delivery, with continuous operation verification under extreme conditions. Even in 24/7 continuous casting plants, -40°C arctic ports, or high-temperature humid ship cabins, our cranes maintain millimeter-level precision and zero-drift stability—quality that stands the test of time.

Extended Longevity & Low Maintenance Cost

Our main girders are FEA-optimized and double-submerged arc welded, with a design life of ≥30 years. Key bearings are lifetime lubrication-free, and hardened travel wheels extend wear cycles by 3 times. Core components feature modular quick-change interfaces with spare parts commonality exceeding 80%. Annual maintenance costs are reduced by 40%~60%, saving millions in lifecycle operating expenses — truly "invest once, benefit long-term."

Energy Efficiency Leader

Our entire series comes standard with IE5 permanent magnet synchronous motors + energy feedback VFD drives, achieving 25%~35% comprehensive energy savings. Single-motor operation under light loads and adaptive speed control reduce electrical waste by over 30%. High-strength steel lightweight design cuts deadweight by 15%~20%, lowering workshop load requirements. A single ladle crane station saves over RMB 150,000 in electricity costs annually, helping customers achieve green and low-carbon production.

Ultimate Safety Redundancy Design

Our hoisting mechanism comes standard with dual brakes + mechanical overspeed switch + triple limit switches, featuring multiple redundant interlocks to prevent load dropping and over-traveling. Large products use box girder torsion-resistant structures, remaining stable even in level 8 gusty winds. Optional intelligent safety monitoring systems detect anomalies in load, skew, wind speed, etc., with automatic alarms and shutdowns. Overall safety redundancy coefficient > 2.0, maintaining zero crane safety incidents for many consecutive years.

Deep Customization & Full Lifecycle Service

We provide complete front-end support from site survey and mechanical simulation to civil review, delivering custom drawings within 2 weeks, with non-standard lead times only 5~7 days longer than standard products. We establish lifelong digital dossiers for customers, warning of end-of-life components 3 months in advance. Our full lifecycle services cover installation training, regular inspections, and remote O&M. With customer repeat purchase rates exceeding 85% for five consecutive years, we are a trustworthy long-term partner.

NUCOLLEN CERTIFICATE

Nukollen Possesses A Wide Range Of Complete Certification Documents Including Those For Ships, Port Equipment Factories, Etc. If You Need Them, Please Feel Free To Request The Detailed Certification Files From Us.

CU-TR Certificate

ISO 14001:2004 Certificate

EAC Certificate

ISO 45001:2018 Certificate

EC Machine Safety Attestation Certificate

EJ/T 9001-2014 Certificate

CE Conformity

FAQS

01What are the structural requirements foWhat are the structural requirements for installing a wall-mounted jib crane?r installing a wall-mounted jib crane?

The wall or support structure must be strong enough to withstand the operational forces (bending moment and torque) exerted by the crane and its rated load. It is typically installed on solid reinforced concrete walls, heavy-duty steel building columns, or structural pillars.

02What is the main advantage of a Wall-Mounted Jib Crane compared to a Free-Standing Jib Crane?

The primary advantage is zero floor space footprint. Because it mounts directly to existing walls or columns, it leaves 100% of the ground area clear for equipment, forklift traffic, and workers. It is also more cost-effective as it requires no concrete foundation work.

03Can the slewing (rotation) angle be adjusted?

Yes. Standard models typically support up to a 180°–200° rotation range along the flat wall. If mounted on an independent column, rotation can reach up to 360°. Mechanical stops can be added to limit rotation to any desired angle for safety.

04How does a Wall-Mounted Jib Crane differ from a Wall-Traveling Jib Crane?

Wall-Mounted Jib Crane: Fixed at a single spot on a wall/column and only rotates horizontally in a semicircle or full circle. Wall-Traveling Jib Crane: Travels longitudinally along elevated rails mounted on the wall, covering an entire row of workstations across a long building bay.

NEED A CUSTOMIZED LIFTING SOLUTION?

Tell Us About Your Project – Capacity, Span, Working Environment – Our Engineers Will Respond Within 24 Hours With A Competitive Quote.

Free Technical Consultation

3D Layout Proposal

Lifetime Support
