Single Girder Hoist Overhead Crane

Single-Girder Bridge Grab Crane

Double Girder Overhead Crane

Explosion-proof Double-girder Bridge Crane

QDxx European Standard Bridge Crane

Authentication mark:

This crane is mainly used in heavy machinery workshops, steel melting shops, equipment assembly plants, and industrial manufacturing facilities.

Capacity:

5 t – 100 t customizable

Lifting Height:

6 m – 30 m (customizable based on building clearance)

Span:

10.5 m – 31.5 m customizable

Voltage/Hertz:

3 Phase 380V 50hz

Working Class:

A5, A6, A7, A8 (Medium to extra heavy duty)

Get A Free Quote

Introduction

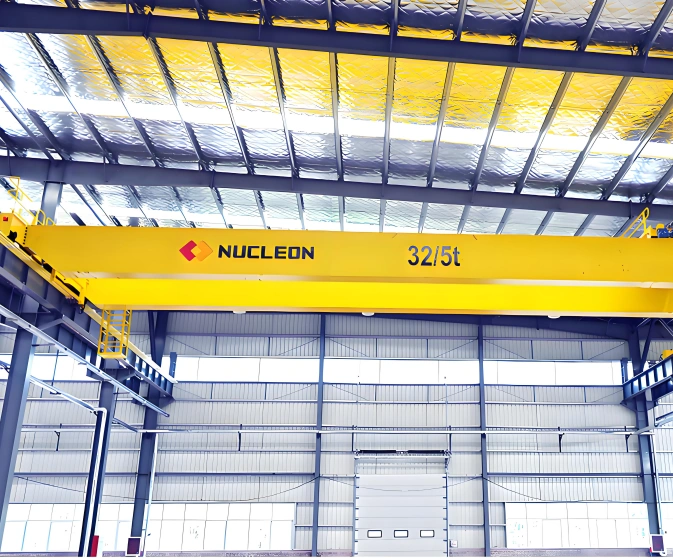

Application Scenario

Advantages

Structural Diagram And Parameter Table

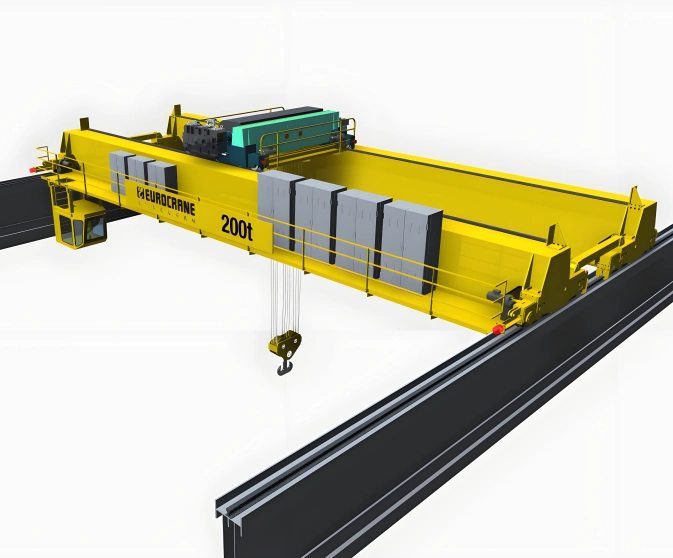

INTRODUCTION

The QDxx European Standard Bridge Crane is an advanced, heavy-duty double girder overhead crane built in strict compliance with FEM / DIN / ISO standards. Engineered with an open winch hoisting trolley running on top of twin box girders, the QDxx series represents the modern European-style evolution of traditional QD cranes—delivering maximum lifting capacity with a compact, low-headroom design.

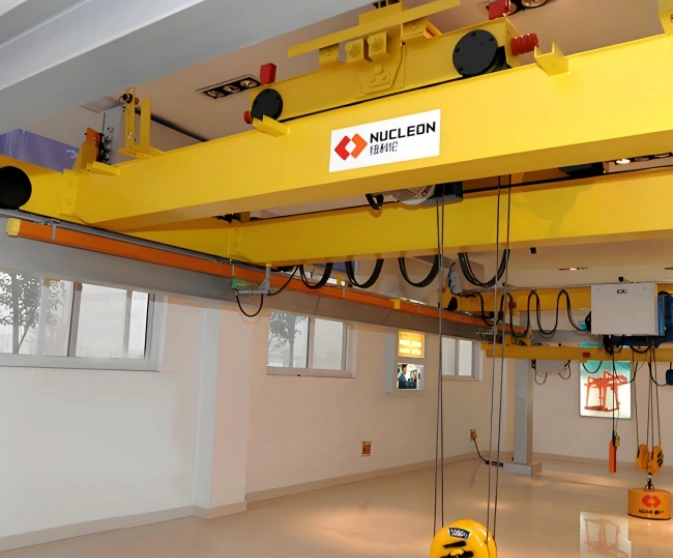

APPLICATION SCENARIO

[1] Heavy Machinery Workshops – Handling large machine parts, engine blocks, press frames, and heavy industrial equipment.

[2] Steel Melting Shops – Lifting and transporting molten metal ladles, scrap charging buckets, and slag pots with heat-resistant components.

[3] Equipment Assembly Plants – Moving transformer bodies, generator rotors, turbine sections, and mining equipment parts.

[4] Steel Service Centers – Loading/unloading steel coils, plates, pipes, and structural sections from trucks and storage racks.

[5] Industrial Manufacturing Facilities – Handling large molds, dies, castings, and finished heavy products in general manufacturing.

ADVANTAGES

[1] Compact European Design – Smaller headroom and hook approach maximize lifting height in limited building clearance.

[2] High Load Capacity – Double girder design supports loads from 5t up to 500t, meeting heavy industrial requirements.

[3] Energy Efficient – IE5 permanent magnet motors with energy feedback reduce power consumption by 25%-35%.

[4] High Duty Cycle – Designed for continuous operation with duty class up to A8, suitable for intensive 24/7 use.

[5] Global Compliance – FEM/ISO certification simplifies export and use in international projects.

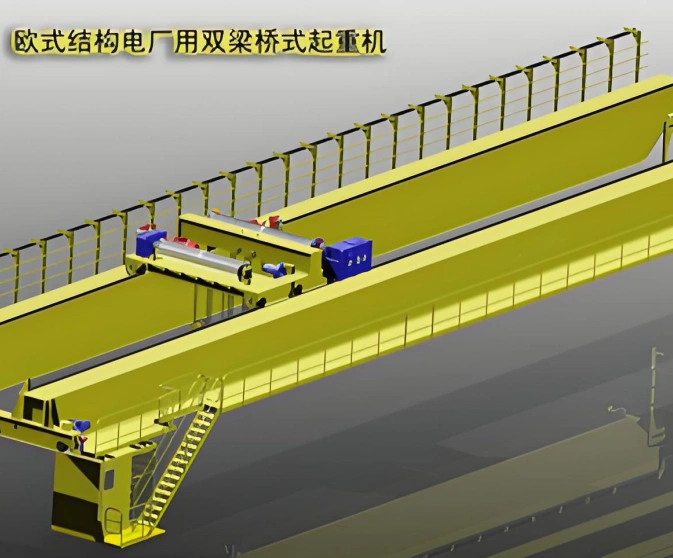

STRUCTURAL DIAGRAM AND PARAMETER TABLE

Parameter	Specification
Working Class	A5, A6, A7, A8
Capacity	5 t – 100 t (up to 500t available)
Span	10.5 m – 31.5 m
Lifting Height	6 m – 30 m
Lifting Speed	Main hook: 4 – 12 m/min Auxiliary hook: 6 – 15 m/min
Trolley Travelling Speed	35 – 45 m/min (VVVF optional)
Crane Travelling Speed	20 – 50 m/min
Control Method	Cabin control / Remote radio control / Pendant control
Power Supply	380V / 50Hz / 3-phase
Design Standard	FEM / ISO / European standard

NUCOLLEN CERTIFICATE

Nukollen Possesses A Wide Range Of Complete Certification Documents Including Those For Ships, Port Equipment Factories, Etc. If You Need Them, Please Feel Free To Request The Detailed Certification Files From Us.
