JIB CRANE

Articulated Arm Jib Crane


Authentication mark:

Precision Manufacturing & Processing Electronics & Automotive Assembly Warehousing & Packaging Lines Light Industrial Production Facilities

Capacity:

80 kg – 600 kg (customizable)

Lifting Height:

1.75 m – 3.5 m (customizable)

Span:

(customizable)

Voltage/Hertz:

(customizable)

Working Class:

(customizable)

Get A Free Quote

Introduction

Application Scenario

Advantages

Structural Diagram And Parameter Table

INTRODUCTION

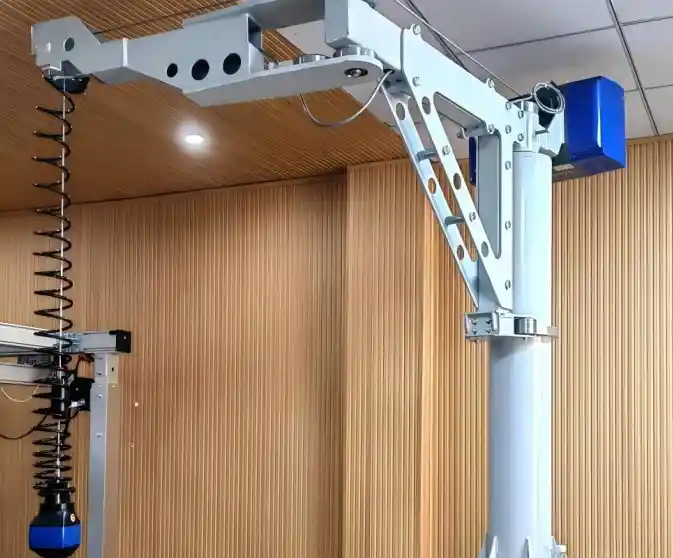

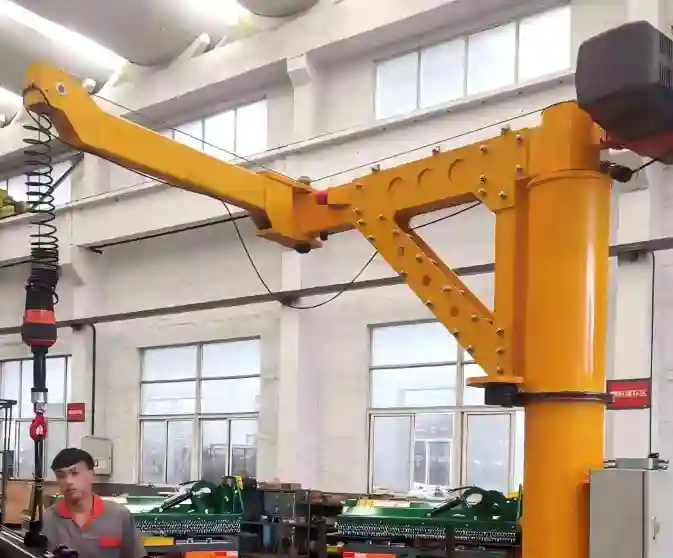

Articulated & Folding Arm Design: Features a main arm and secondary arm structure that allows smooth rotation around obstacles and machinery, perfect for tight or complex work areas.
Smart Servo Hoisting System: Integrated with an intelligent servo hoist supporting customizable lifting attachments (slings, clamps, vacuum lifters) and flexible control options (coaxial pressure handles, slide handles, touch handles, CVT, wireless remote).
Enhanced Load Balance & Capacity: The gooseneck/articulated configuration offers superior stability and structural balance compared to conventional straight-arm jib cranes of equivalent size.
Pinpoint Precision & Control: Delivers ultra-smooth, exact load placement to optimize assembly line speed, workplace ergonomics, and operational safety.
Advanced Safety Features: Built with overload protection systems, anti-sway mechanisms, and anti-collision technology to ensure efficient and reliable material handling.

APPLICATION SCENARIO

ADVANTAGES

STRUCTURAL DIAGRAM AND PARAMETER TABLE

Technical Parameter	Specification
Lifting Capacity	80 kg – 600 kg (customizable)
Working Radius	2.5 m – 4 m
Lifting Height	1.75 m – 3.5 m (customizable)
Rotation Angle	Primary Arm: up to 360° / Secondary Arm: up to 300° (Manual Slewing)
Hoisting Mechanism	Smart Servo Electric Hoist
Control Options	Coaxial Pressure Handle / Slide Handle / Touch Handle / Wireless Remote
Lifting Attachments	Custom Grippers, Vacuum Lifters, Mechanical Clamps, Hooks
Protection Features	Overload Protection, Anti-Sway, Anti-Collision System

Six core advantages

Full Scenario Coverage

Nucleon covers over 20 product categories including ladle cranes, multi-purpose cranes, intelligent cranes, overhead/portal cranes, RTG, RMG, deck cranes, portal cranes, girder launchers, yacht cranes, KBK, and jib cranes. From steel smelting to port handling, bridge construction to ship equipment, Nucleon provides one-stop lifting solutions. Whether standard models or extreme-condition customizations, Nucleon possesses mature technical expertise and proven track records, saving customers from dealing with multiple suppliers.

Military-Grade Quality Standards

We use high-strength steel from Baosteel/Ansteel for key structural components, with 100% NDT inspection and one-clamp CNC gantry machining. Every machine undergoes 120% dynamic load and 125% static load tests before delivery, with continuous operation verification under extreme conditions. Even in 24/7 continuous casting plants, -40°C arctic ports, or high-temperature humid ship cabins, our cranes maintain millimeter-level precision and zero-drift stability—quality that stands the test of time.

Extended Longevity & Low Maintenance Cost

Our main girders are FEA-optimized and double-submerged arc welded, with a design life of ≥30 years. Key bearings are lifetime lubrication-free, and hardened travel wheels extend wear cycles by 3 times. Core components feature modular quick-change interfaces with spare parts commonality exceeding 80%. Annual maintenance costs are reduced by 40%~60%, saving millions in lifecycle operating expenses — truly "invest once, benefit long-term."

Energy Efficiency Leader

Our entire series comes standard with IE5 permanent magnet synchronous motors + energy feedback VFD drives, achieving 25%~35% comprehensive energy savings. Single-motor operation under light loads and adaptive speed control reduce electrical waste by over 30%. High-strength steel lightweight design cuts deadweight by 15%~20%, lowering workshop load requirements. A single ladle crane station saves over RMB 150,000 in electricity costs annually, helping customers achieve green and low-carbon production.

Ultimate Safety Redundancy Design

Our hoisting mechanism comes standard with dual brakes + mechanical overspeed switch + triple limit switches, featuring multiple redundant interlocks to prevent load dropping and over-traveling. Large products use box girder torsion-resistant structures, remaining stable even in level 8 gusty winds. Optional intelligent safety monitoring systems detect anomalies in load, skew, wind speed, etc., with automatic alarms and shutdowns. Overall safety redundancy coefficient > 2.0, maintaining zero crane safety incidents for many consecutive years.

Deep Customization & Full Lifecycle Service

We provide complete front-end support from site survey and mechanical simulation to civil review, delivering custom drawings within 2 weeks, with non-standard lead times only 5~7 days longer than standard products. We establish lifelong digital dossiers for customers, warning of end-of-life components 3 months in advance. Our full lifecycle services cover installation training, regular inspections, and remote O&M. With customer repeat purchase rates exceeding 85% for five consecutive years, we are a trustworthy long-term partner.

NUCOLLEN CERTIFICATE

Nukollen Possesses A Wide Range Of Complete Certification Documents Including Those For Ships, Port Equipment Factories, Etc. If You Need Them, Please Feel Free To Request The Detailed Certification Files From Us.

CU-TR Certificate

ISO 14001:2004 Certificate

EAC Certificate

ISO 45001:2018 Certificate

EC Machine Safety Attestation Certificate

EJ/T 9001-2014 Certificate

CE Conformity

FAQS

01What is the main advantage of an Articulated Arm Jib Crane over a standard straight-arm jib crane?

The primary advantage is its folding double-joint arm. It can smoothly bend and maneuver around obstacle posts, machine doors, and tight corners to reach areas that standard rigid straight-arm cranes cannot access.

02How does the Smart Servo Hoist system improve lifting efficiency?

The intelligent servo hoist provides stepless speed control, intuitive handle resistance sensing, and pinpoint load positioning. It allows operators to handle sensitive or fragile components effortlessly with minimal physical strain.

03What end-effectors or lifting tools can be attached to this crane?

We offer a wide range of customizable lifting tools, including magnetic lifters, vacuum suction pads, mechanical clamps, pneumatically operated grippers, and standard hooks tailored to your specific workpiece.

04Can this crane be mounted on an existing column or wall instead of a floor pillar?

Yes. While standard models come with a floor-mounted pillar (Free Standing), the articulated arm structure can also be engineered as a Wall-Mounted Articulated Jib Crane to suit your facility’s structural setup.

NEED A CUSTOMIZED LIFTING SOLUTION?

Tell Us About Your Project – Capacity, Span, Working Environment – Our Engineers Will Respond Within 24 Hours With A Competitive Quote.

Free Technical Consultation

3D Layout Proposal

Lifetime Support
