Boat Travel Lift

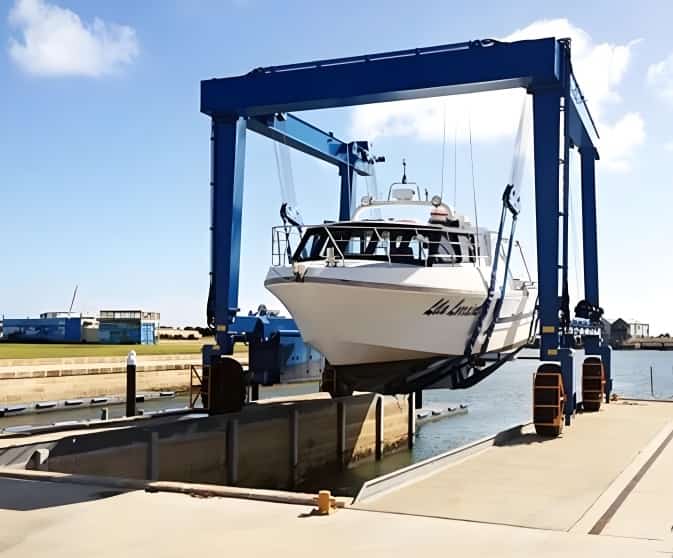

Marine Travel Lift

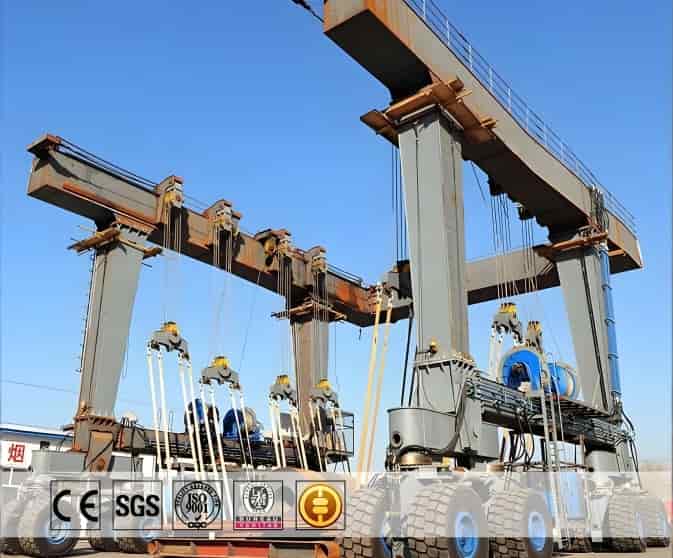

Boat Hoist Crane
Mobile Boat Hoist

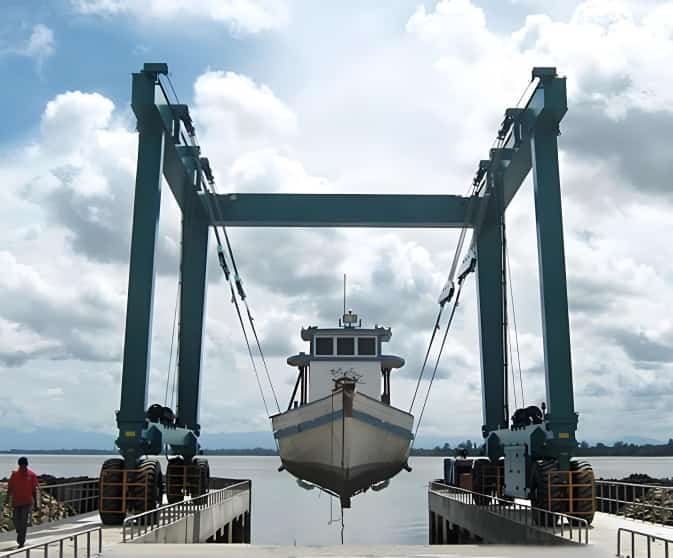

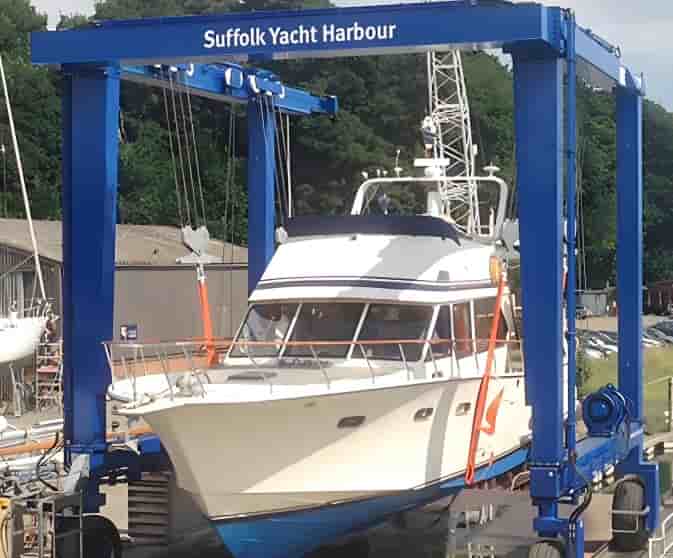

Boat Handling Gantry Crane
Marine Travel Lift
Boat Hoist Crane
Mobile Boat Hoist
Boat Handling Gantry Crane
Authentication mark:
ccc
ce
ABS
11
12
Yacht Clubs & Commercial Marinas,Shipbuilding & Ship Repair Yards,Maritime Defense, Coast Guard & Water Police,Commercial Fishing & Workboat Operations,Marine Rescue & Oceanographic Research
Capacity:
32 t – 1,200 t
Lifting Height:
(customizable)
Span:
(customizable)
Voltage/Hertz:
(customizable)
Working Class:
(customizable)
Lifting Speed:
0~2m/min (full load), 0~5m/min (no load)
Running speed:
0~20m/min (full load), 0~35m/min (no load)
Climbing capacity:
2% ~ 4%
Get A Free Quote quote
WhatsApp quote

Introduction

Application Scenario

Advantages

Structural Diagram And Parameter Table

INTRODUCTION

A Boat Travel Lift (also known as a Marine Travel Lift or Mobile Boat Hoist) is a rubber-tired mobile gantry crane designed specifically for hauling, launching, and dry-dock transporting boats, yachts, and commercial vessels. Featuring an open-top "U"-shaped steel frame and soft, non-marring synthetic slings suspended from multi-point hoisting winches, it straddles slipways or haul-out piers to maneuver vessels safely between water and shore.

APPLICATION SCENARIO

  • Shipyards & Dry Docks: Hauling vessels out of the water for hull cleaning, painting, engine overhauls, and structural repairs.

  • Marinas & Yacht Clubs: Launching new boats, performing seasonal haul-outs, and moving luxury yachts to dry storage.

  • Commercial Ports & Naval Bases: Transporting tugboats, patrol vessels, pilot boats, and commercial fishing fleets for routine maintenance.


ADVANTAGES

  • Hull-Safe Lifting: Uses soft synthetic slings that distribute weight evenly, preventing scratches, deformation, or structural damage to delicate hulls (fiberglass, aluminum, steel, or wood).

  • Multi-Directional Steering: Features 90° pivot, diagonal, carousel, and Ackerman steering modes for effortless maneuvering in tight shipyard spaces.

  • Customizable Capacity: Available in wide load ranges (10 Tons up to 1,200+ Tons) with adjustable sling placement to handle varying boat lengths and beam widths.

  • High Space Efficiency: Allows tight park-and-stack arrangements in dry docks and marinas, maximizing available ground storage space.


STRUCTURAL DIAGRAM AND PARAMETER TABLE

Parameter Specification
Lifting Capacity 32t ~ 1200t (customizable)
Span According to customer requirements
Lifting Height According to customer requirements
Lifting speed (no load) 0~5m/min (customizable)
Lifting speed (full load) 0~2m/min (customizable)
Running speed (no load) 0~35m/min (customizable)
Running speed (full load) 0~20m/min (customizable)
Climbing capacity 2% ~ 4% (customizable)
Temperature -20°C to +50°C
