JIB CRANE

Wall-Traveling Jib Crane


Authentication mark:

Manufacturing & Heavy Machinery Construction & Building Materials Logistics, Warehousing & Shipping Assembly Line Production Facilities

Capacity:

0.5 t – 16 t (customizable)

Lifting Height:

3 m – 30 m (customizable)

Span:

(customizable)

Voltage/Hertz:

(customizable)

Working Class:

(customizable)

Get A Free Quote

Introduction

Application Scenario

Advantages

Structural Diagram And Parameter Table

INTRODUCTION

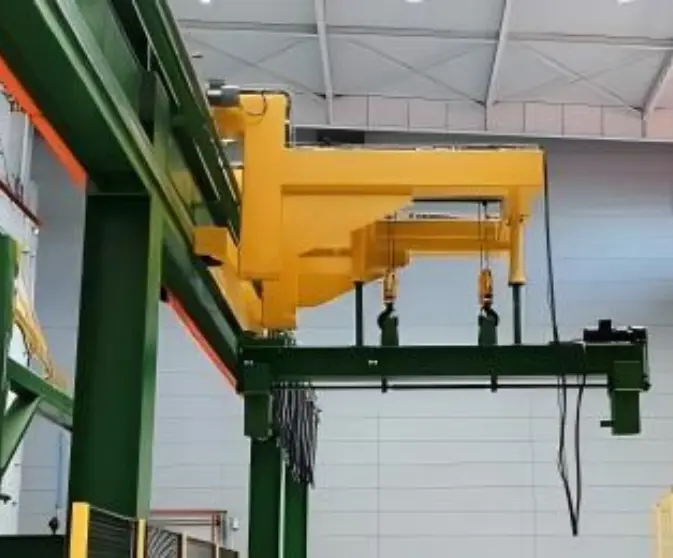

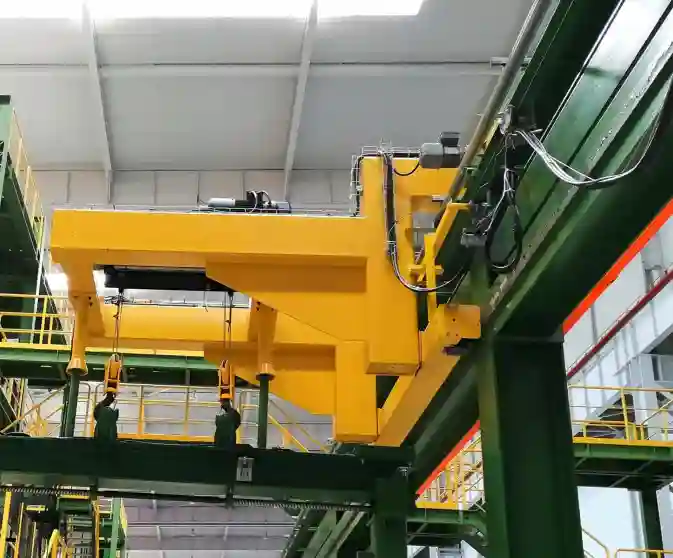

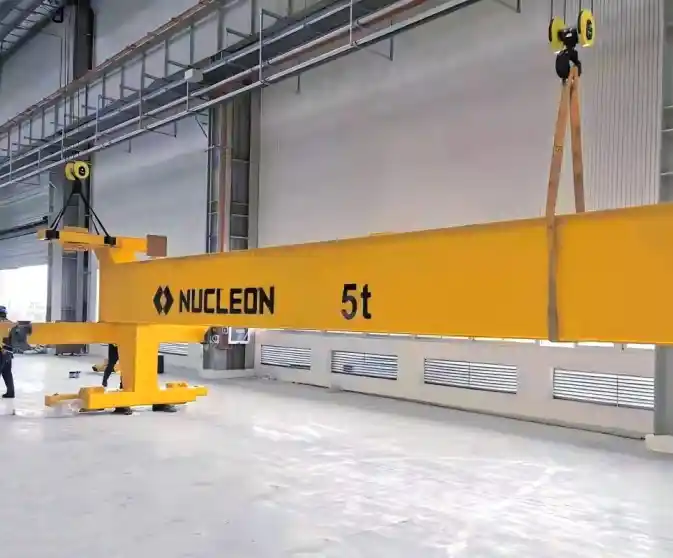

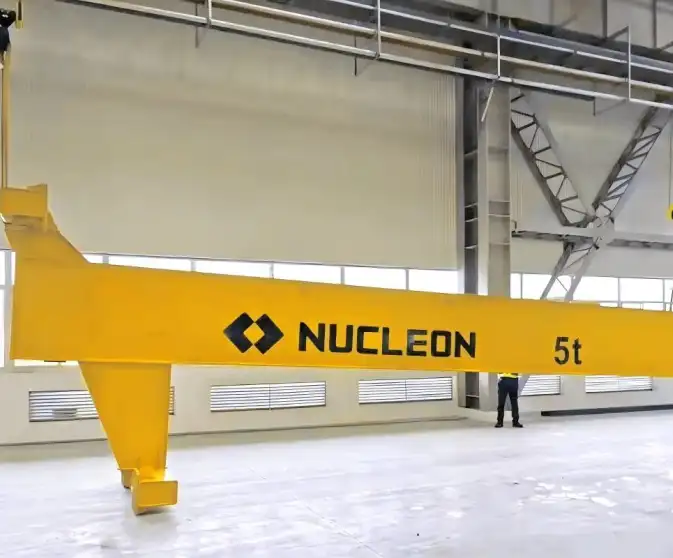

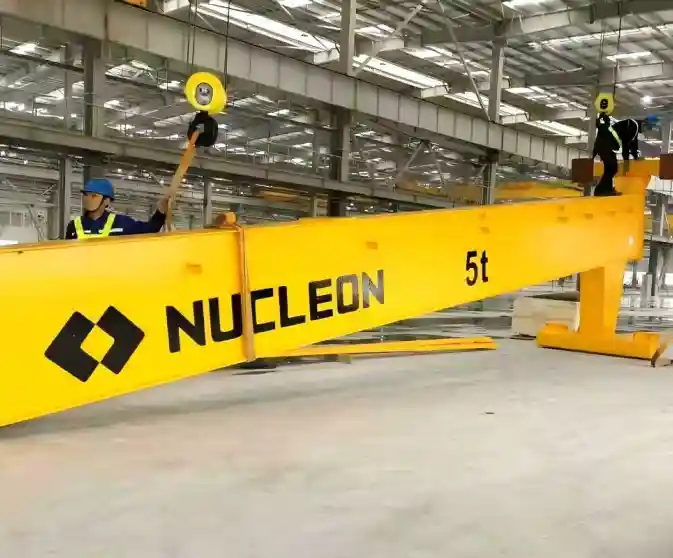

An innovative lifting solution mounted on elevated wall rails. Travels horizontally along the length of the building bay to serve multiple workstations seamlessly without occupying ground space.

APPLICATION SCENARIO

ADVANTAGES

STRUCTURAL DIAGRAM AND PARAMETER TABLE

Technical Parameter	Specification
Lifting Capacity	0.5 t – 16 t (customizable)
Jib Length	3 m – 15 m
Lifting Height	3 m – 30 m (customizable)
Traveling Speed	20 m/min, 30 m/min (customizable)
Lifting Speed	0.8/8 m/min (customizable)
Hoisting Equipment	Electric Chain Hoist / Electric Wire Rope Hoist
Track / Rail Type	Standard Steel Rail
Power Supply	(customizable)

Six core advantages

Full Scenario Coverage

Nucleon covers over 20 product categories including ladle cranes, multi-purpose cranes, intelligent cranes, overhead/portal cranes, RTG, RMG, deck cranes, portal cranes, girder launchers, yacht cranes, KBK, and jib cranes. From steel smelting to port handling, bridge construction to ship equipment, Nucleon provides one-stop lifting solutions. Whether standard models or extreme-condition customizations, Nucleon possesses mature technical expertise and proven track records, saving customers from dealing with multiple suppliers.

Military-Grade Quality Standards

We use high-strength steel from Baosteel/Ansteel for key structural components, with 100% NDT inspection and one-clamp CNC gantry machining. Every machine undergoes 120% dynamic load and 125% static load tests before delivery, with continuous operation verification under extreme conditions. Even in 24/7 continuous casting plants, -40°C arctic ports, or high-temperature humid ship cabins, our cranes maintain millimeter-level precision and zero-drift stability—quality that stands the test of time.

Extended Longevity & Low Maintenance Cost

Our main girders are FEA-optimized and double-submerged arc welded, with a design life of ≥30 years. Key bearings are lifetime lubrication-free, and hardened travel wheels extend wear cycles by 3 times. Core components feature modular quick-change interfaces with spare parts commonality exceeding 80%. Annual maintenance costs are reduced by 40%~60%, saving millions in lifecycle operating expenses — truly "invest once, benefit long-term."

Energy Efficiency Leader

Our entire series comes standard with IE5 permanent magnet synchronous motors + energy feedback VFD drives, achieving 25%~35% comprehensive energy savings. Single-motor operation under light loads and adaptive speed control reduce electrical waste by over 30%. High-strength steel lightweight design cuts deadweight by 15%~20%, lowering workshop load requirements. A single ladle crane station saves over RMB 150,000 in electricity costs annually, helping customers achieve green and low-carbon production.

Ultimate Safety Redundancy Design

Our hoisting mechanism comes standard with dual brakes + mechanical overspeed switch + triple limit switches, featuring multiple redundant interlocks to prevent load dropping and over-traveling. Large products use box girder torsion-resistant structures, remaining stable even in level 8 gusty winds. Optional intelligent safety monitoring systems detect anomalies in load, skew, wind speed, etc., with automatic alarms and shutdowns. Overall safety redundancy coefficient > 2.0, maintaining zero crane safety incidents for many consecutive years.

Deep Customization & Full Lifecycle Service

We provide complete front-end support from site survey and mechanical simulation to civil review, delivering custom drawings within 2 weeks, with non-standard lead times only 5~7 days longer than standard products. We establish lifelong digital dossiers for customers, warning of end-of-life components 3 months in advance. Our full lifecycle services cover installation training, regular inspections, and remote O&M. With customer repeat purchase rates exceeding 85% for five consecutive years, we are a trustworthy long-term partner.

NUCOLLEN CERTIFICATE

Nukollen Possesses A Wide Range Of Complete Certification Documents Including Those For Ships, Port Equipment Factories, Etc. If You Need Them, Please Feel Free To Request The Detailed Certification Files From Us.

CU-TR Certificate

ISO 14001:2004 Certificate

EAC Certificate

ISO 45001:2018 Certificate

EC Machine Safety Attestation Certificate

EJ/T 9001-2014 Certificate

CE Conformity

FAQS

01What is the main difference between a Wall-Mounted Jib Crane and a Wall-Traveling Jib Crane?

A Wall-Mounted Jib Crane is fixed in one spot on a wall/column and only rotates in a fixed semi-circle. A Wall-Traveling Jib Crane is mounted on elevated rails along the building wall, allowing it to move longitudinally down the entire bay to serve multiple workstations.

02Can a Wall-Traveling Jib Crane operate under an existing Overhead Crane?

Yes! This is one of its primary applications. It is frequently installed on a lower level under large overhead traveling cranes (EOT cranes) to handle lighter, localized load movements without waiting for the main crane.

03What type of runway rails are required for installation?

The crane operates on custom elevated steel rails (such as standard P24 or P38 steel rails or square bars) mounted on the building's support columns or vertical walls. We provide full rail layout designs and loading specifications for your engineering team.

04How is power supplied to a Wall-Traveling Jib Crane as it moves along the track?

Power is typically delivered via a Festoon Cable System running along the track or an Enclosed Conductor Bar System (Busbar), which ensures smooth and continuous electrical supply during long-distance travel.

05Can the travel distance and speed be customized?

Absolutely. The traveling distance is virtually unlimited and depends entirely on the length of your installed rail track. Travel speeds can also be customized with Variable Frequency Drives (VFD) for smooth acceleration and precise load positioning.

NEED A CUSTOMIZED LIFTING SOLUTION?

Tell Us About Your Project – Capacity, Span, Working Environment – Our Engineers Will Respond Within 24 Hours With A Competitive Quote.
