BMHN Model Electric Hoist Semi-gantry Crane
product

MH Single Beam Hoist Gantry Crane
product

BMG Double-girder Semi-gantry Crane
product

Double Beam European Type Electric Gantry Crane

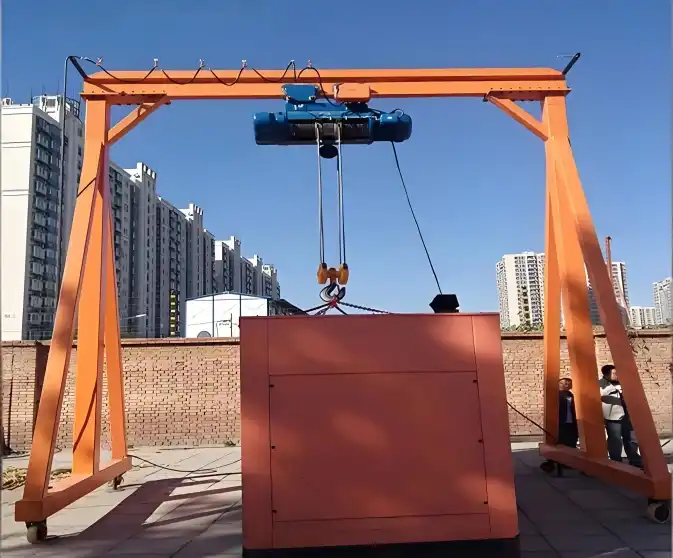

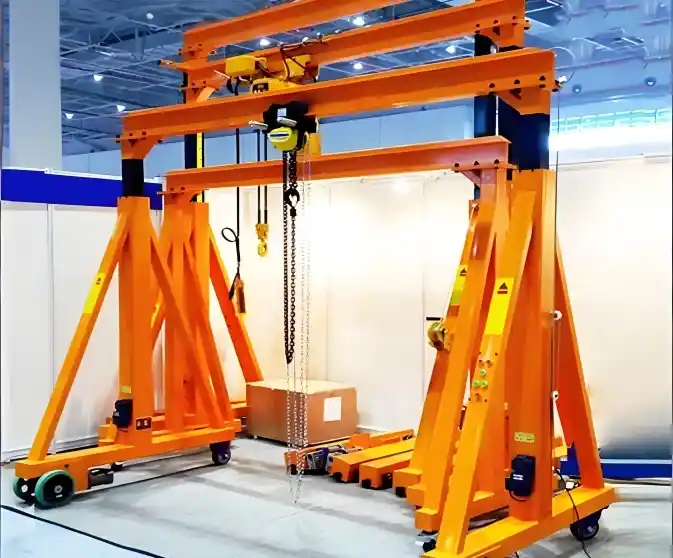

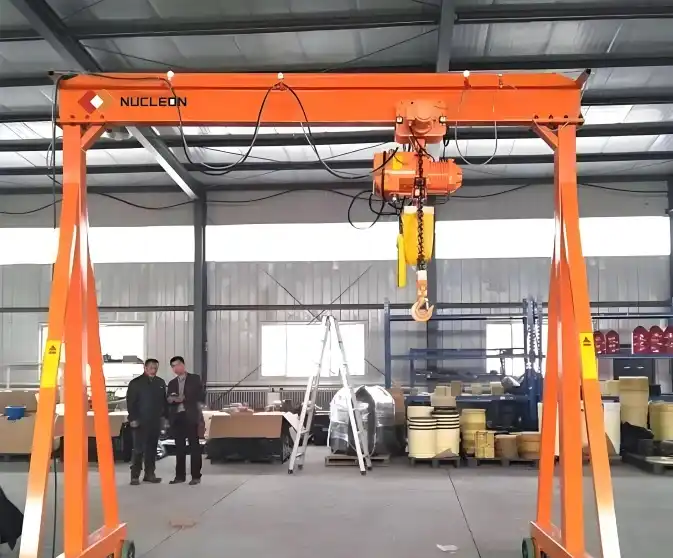

Mini portable gantry crane

Authentication mark:
ccc
ce
ABS
11
12
This crane is mainly used in maintenance and repair shops, small-scale manufacturing, and warehousing and logistics.
Capacity:
0.25 t – 3 t , customized
Lifting Height:
1 m – 3.5 m (,customizable)
Span:
1 m – 5 m (customizable)
Voltage/Hertz:
380V, 50Hz, three-phase
Working Class:
A1, A2, A3
Get A Free Quote quote
WhatsApp quote

Introduction

Application Scenario

Advantages

Structural Diagram And Parameter Table

INTRODUCTION

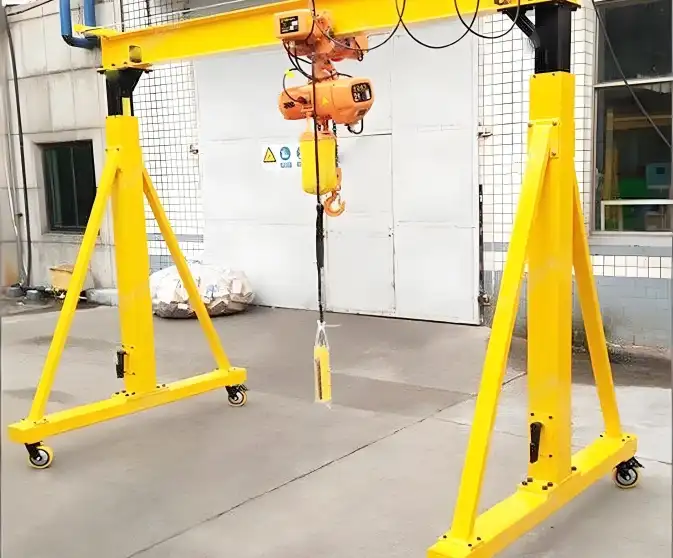

A Mini Portable Gantry Crane is a compact, lightweight, and highly adaptable lifting device designed to bridge the gap between heavy, fixed crane systems (like overhead or large gantry cranes) and manual lifting. Built with high-strength carbon steel or aerospace-grade aluminum alloy, it features universal swivel casters with brakes at the base, eliminating the need for dedicated floor rails or structural building modifications.

APPLICATION SCENARIO

  • Machinery & Workshops: Precision CNC mold loading/unloading, plus heavy motor, gearbox, and equipment overhaul.

  • Auto Repair & Service: Safe lifting of engines, transmissions, and heavy chassis components in vehicle bays.

  • Warehousing & Logistics: Loading, unloading, and stacking heavy crates or steel in facilities without overhead bridge cranes.

  • Cleanrooms & Pharma (Aluminum): Contamination-free, rust-proof equipment maintenance in pharmaceutical, food, or lab environments.


ADVANTAGES

  • Adjustable Height & Span: Telescoping support legs enable height adjustments to clear low doorways, basements, or tight mezzanine ceilings.

  • High Cost-Efficiency (ROI): Eliminates the expensive civil engineering, steel runway installations, and plant structural permits associated with permanent bridge cranes.

  • Extreme Portability & Rapid Assembly: Modular design allows 1–2 operators to assemble or dismantle the structure using simple bolt connections in 10–15 minutes, making it easy to store or transport in standard commercial vehicles.


STRUCTURAL DIAGRAM AND PARAMETER TABLE

Parameter Specification
Working Class A1, A2, A3
Capacity 0.25 t – 3 t
Span 1 m – 5 m (adjustable or fixed width, customizable)
Lifting Height 1 m – 3.5 m
Lifting Speed 2 – 6 m/min (single speed, manual chain hoist or electric hoist)
Trolley Travelling Speed Manual push/pull (standard) / Motorized (optional for larger models)
Crane Travelling Speed Manual push/pull (standard) / Motorized (optional for larger models)
Control Method Manual chain operation (hand chain hoist) / Pendant control (electric hoist)
Power Supply Manual hoist: No power required Electric hoist: 110V – 240V / 50-60Hz / 1-phase (portable plug-in)
Temperature -10°C to +50°C (indoor/outdoor general environment)
Protection Grade Hoist motor (if electric): IP44 – IP54
Girder Type Single Beam – Light-duty rolled steel I-beam or aluminum beam (bolt-together / foldable design for portability)
