Explosion-proof double-girder bridge crane
Authentication mark:
Explosion-proof double-girder overhead cranes are mainly used in hazardous environments with explosive gases or dust, such as petrochemical, coal chemical, pharmaceutical, defense, and natural gas industries.
Capacity:
5 t – 100 t+ (customizable for explosive/hazardous areas)
Lifting Height:
6 m – 30 m customizable
Span:
10.5 m – 31.5 m customizable
Voltage/Hertz:
380V / 50Hz / 3-phase
Working Class:
A5, A6, A7 (Medium to heavy duty for hazardous environments)
Get A Free Quote
WhatsApp
Introduction
Application Scenario
Advantages
Structural Diagram And Parameter Table
INTRODUCTION
What is this?
The explosion-proof double-girder bridge crane is a double girder bridge crane specifically designed for environments with explosive gases or dust. It features flameproof motors, non-sparking materials, and anti-static design to achieve safe material handling in hazardous areas such as chemical plants, oil refineries, paint workshops, and pharmaceutical factories. If you are managing a production workshop with flammable and explosive risks and need a crane that can safely operate in Zone 1/Zone 2 or Zone 21/Zone 22 areas, this product is designed for you.
Why choose an explosion-proof crane over a standard bridge crane?
Compared to standard bridge cranes, the explosion-proof crane offers four core advantages:
First, explosion-proof certification – the entire crane complies with Ex d IIB T4 or Ex d IIC T4 explosion-proof standards, suitable for gas and dust explosive environments, with third-party certification available.
Second, non-sparking design – all moving parts use non-sparking materials such as copper or beryllium bronze, brakes are explosion-proof non-sparking type, eliminating spark generation.
Third, comprehensive electrical protection – motors are flameproof Ex d or increased safety Ex e, electrical cabinets are pressurized or flameproof type, with IP55 or higher protection rating.
Fourth, anti-static grounding – wire ropes and hook blocks have anti-static grounding function to prevent static accumulation that could cause explosions.
Protect every lift in hazardous environments with professional explosion-proof design.
What can we do for you?
We understand that every customer has different explosion-proof zone requirements, different materials, and different working conditions. Therefore, we offer flexible customization options: lifting capacity from 5 tons to over 100 tons; explosion-proof ratings of Ex d IIB T4, Ex d IIC T4, etc.; temperature classes T4, T5, T6; control options of remote radio or explosion-proof cabin; VVVF speed control optional. Whether your hazardous area is gas or dust environment, we can match the most suitable explosion-proof rating and configuration.
Unsure? Don't know?
Not sure whether your site is Zone 1 or Zone 2? Not sure what explosion-proof rating and temperature class you need? No problem. Just tell us: the name of the flammable substance present (e.g., hydrogen, acetylene, dust, etc.), your explosion-proof zone classification, and your lifting requirements. Our engineers will provide you with an accurate quote and explosion-proof drawings within 24 hours. Click the button below or contact us via WhatsApp/email to get your customized solution.
💡 Tip: We offer free selection consulting. Even if you are unsure about specific parameters, feel free to describe your hazardous environment type and handling needs, and we will recommend the appropriate explosion-proof rating for you.
The explosion-proof double-girder bridge crane is a double girder bridge crane specifically designed for environments with explosive gases or dust. It features flameproof motors, non-sparking materials, and anti-static design to achieve safe material handling in hazardous areas such as chemical plants, oil refineries, paint workshops, and pharmaceutical factories. If you are managing a production workshop with flammable and explosive risks and need a crane that can safely operate in Zone 1/Zone 2 or Zone 21/Zone 22 areas, this product is designed for you.
Why choose an explosion-proof crane over a standard bridge crane?
Compared to standard bridge cranes, the explosion-proof crane offers four core advantages:
First, explosion-proof certification – the entire crane complies with Ex d IIB T4 or Ex d IIC T4 explosion-proof standards, suitable for gas and dust explosive environments, with third-party certification available.
Second, non-sparking design – all moving parts use non-sparking materials such as copper or beryllium bronze, brakes are explosion-proof non-sparking type, eliminating spark generation.
Third, comprehensive electrical protection – motors are flameproof Ex d or increased safety Ex e, electrical cabinets are pressurized or flameproof type, with IP55 or higher protection rating.
Fourth, anti-static grounding – wire ropes and hook blocks have anti-static grounding function to prevent static accumulation that could cause explosions.
Protect every lift in hazardous environments with professional explosion-proof design.
What can we do for you?
We understand that every customer has different explosion-proof zone requirements, different materials, and different working conditions. Therefore, we offer flexible customization options: lifting capacity from 5 tons to over 100 tons; explosion-proof ratings of Ex d IIB T4, Ex d IIC T4, etc.; temperature classes T4, T5, T6; control options of remote radio or explosion-proof cabin; VVVF speed control optional. Whether your hazardous area is gas or dust environment, we can match the most suitable explosion-proof rating and configuration.
Unsure? Don't know?
Not sure whether your site is Zone 1 or Zone 2? Not sure what explosion-proof rating and temperature class you need? No problem. Just tell us: the name of the flammable substance present (e.g., hydrogen, acetylene, dust, etc.), your explosion-proof zone classification, and your lifting requirements. Our engineers will provide you with an accurate quote and explosion-proof drawings within 24 hours. Click the button below or contact us via WhatsApp/email to get your customized solution.
💡 Tip: We offer free selection consulting. Even if you are unsure about specific parameters, feel free to describe your hazardous environment type and handling needs, and we will recommend the appropriate explosion-proof rating for you.
APPLICATION SCENARIO
1.Petrochemical & Refinery Industry – Lifting reactors, heat exchangers, pumps, and piping in oil refineries and chemical plants.
2.Coal Chemical & Coking Plants – Handling coal dust, coke, and chemical intermediates in explosive atmospheres.
3.Pharmaceutical Industry – Moving flammable solvents, powders, and equipment in controlled hazardous zones.
4.Defense & Aerospace – Handling propellants, explosives, and sensitive materials in munitions factories or rocket assembly sites.
5.Natural Gas & LNG Terminals – Lifting valves, compressors, and heavy components in gas liquefaction and storage areas.
6.Paint & Coating Factories – Transporting flammable liquids, thinners, and finished products in spray booths or mixing rooms.
2.Coal Chemical & Coking Plants – Handling coal dust, coke, and chemical intermediates in explosive atmospheres.
3.Pharmaceutical Industry – Moving flammable solvents, powders, and equipment in controlled hazardous zones.
4.Defense & Aerospace – Handling propellants, explosives, and sensitive materials in munitions factories or rocket assembly sites.
5.Natural Gas & LNG Terminals – Lifting valves, compressors, and heavy components in gas liquefaction and storage areas.
6.Paint & Coating Factories – Transporting flammable liquids, thinners, and finished products in spray booths or mixing rooms.
ADVANTAGES
1.Certified Explosion-Proof Safety – All electrical and mechanical components are designed to prevent sparks, arcs, or hot surfaces, ensuring safe operation in hazardous zones.
2.High Load Capacity – Double-girder structure provides lifting capacity from 5 tons up to 100+ tons, suitable for heavy industrial needs.
3.Long Span & High Rigidity – Can easily reach spans over 30 meters, with stable and precise load handling.
4.Durable & Corrosion-Resistant – Special coatings and materials protect against chemical corrosion and harsh environments.
5.Reliable & Low Maintenance – Modular design and explosion-proof components reduce failure rates and simplify daily inspection.
2.High Load Capacity – Double-girder structure provides lifting capacity from 5 tons up to 100+ tons, suitable for heavy industrial needs.
3.Long Span & High Rigidity – Can easily reach spans over 30 meters, with stable and precise load handling.
4.Durable & Corrosion-Resistant – Special coatings and materials protect against chemical corrosion and harsh environments.
5.Reliable & Low Maintenance – Modular design and explosion-proof components reduce failure rates and simplify daily inspection.

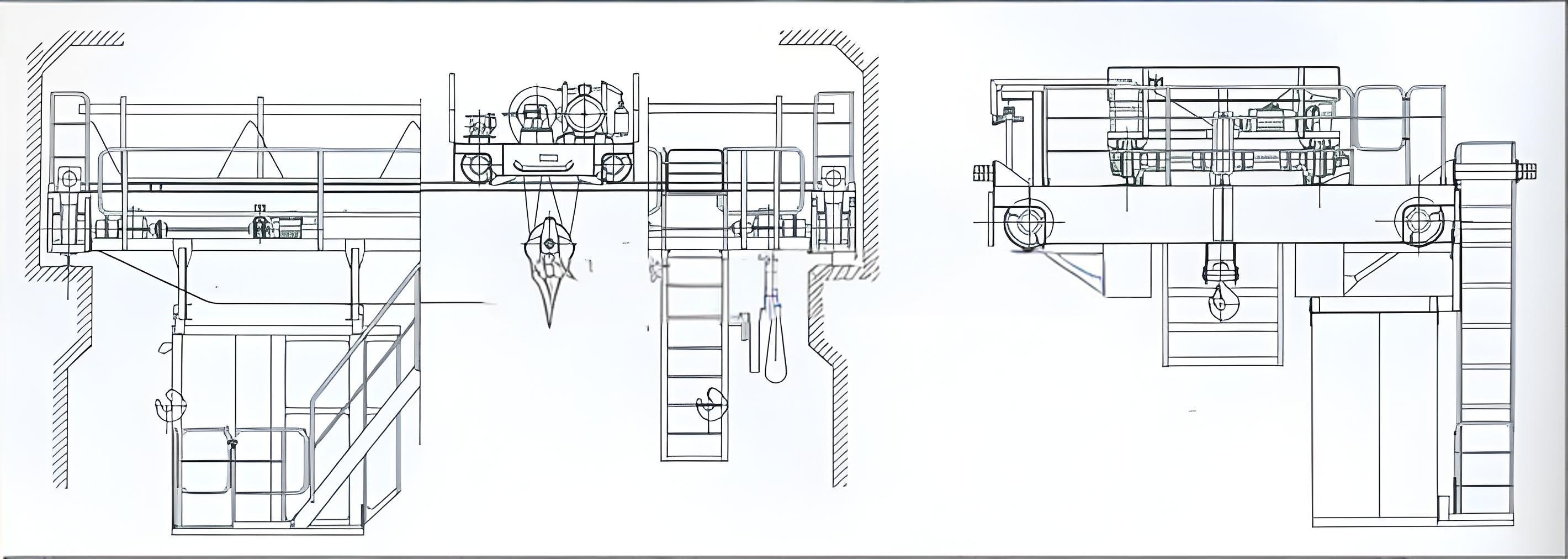

STRUCTURAL DIAGRAM AND PARAMETER TABLE
| Parameter | Specification |
|---|---|
| Working Class | A5, A6, A7 |
| Capacity | 5 t – 100 t+ |
| Span | 10.5 m – 31.5 m customizable |
| Lifting Height | 6 m – 30 m customizable |
| Lifting Speed | Main hook: 4 – 10 m/min Auxiliary hook: 6 – 12 m/min |
| Trolley Travelling Speed | 20 – 40 m/min |
| Crane Travelling Speed | 40 – 75 m/min |
| Control Method | Remote radio control |
| Power Supply | 380V / 50Hz / 3-phase (customizable to other standards) |
| Temperature | -20°C to +50°C |
| Protection Grade | Motors: Ex d (flameproof) or Ex e (increased safety), IP55+ Insulation class F or H Full explosion-proof electrical components |
| Girder Type | Double-girder with explosion-proof design |
