Electric wall-mounted cantilever crane

What is this?

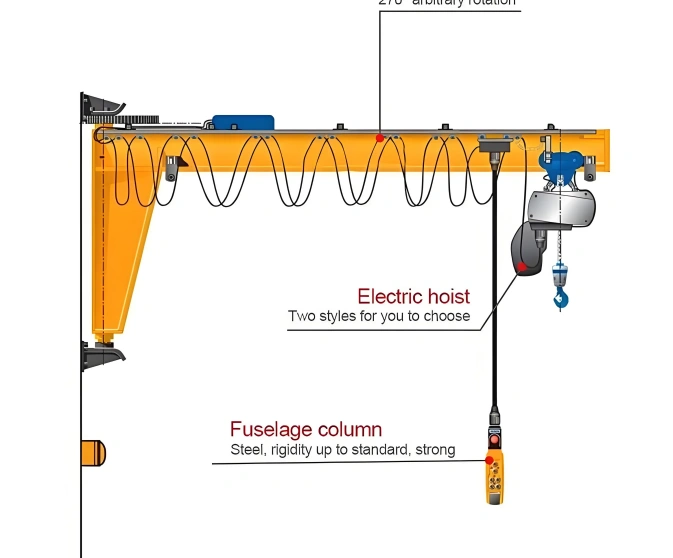

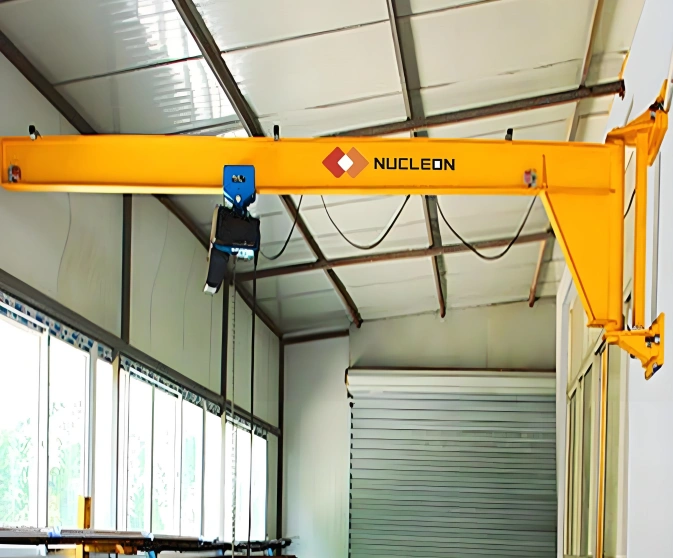

The electric wall-mounted cantilever crane is a jib crane fixed to a building wall or column. Through the hoist's lifting and traversing movements along the cantilever arm, combined with the arm's rotation, it achieves fast lifting and handling of materials around wall-side workstations. If your workshop has limited floor space and cannot accommodate a column-mounted jib crane, but your wall structure has sufficient strength, and you need to cover a扇形 working area, this product is designed for you.

Why choose a wall-mounted cantilever crane over a column-mounted jib crane?

Compared to column-mounted jib cranes, the wall-mounted solution offers four core advantages:

First, zero floor space occupation – completely fixed to the wall, zero floor footprint, allowing forklifts and personnel to pass freely.

Second, lower investment cost – no independent column or concrete foundation required, utilizing existing wall structure, reducing cost by 20%-30%.

Third, more flexible installation – mounting height and position can be determined arbitrarily according to workstation location, not restricted by ground foundation.

Fourth, covers wall-side areas – especially suitable for wall-side production lines, loading docks, and other scenarios requiring coverage of the working area along the wall.

Solve material handling problems at wall-side workstations with a more space-saving approach.

What can we do for you?

We understand that every customer has different wall conditions, different capacity requirements, and different arm lengths. Therefore, we offer flexible customization options: lifting capacity from 0.25 ton to 3 tons; cantilever radius from 2 meters to 8 meters; rotation angles of 180° or 270°; rotation methods of manual or electric; control options of pendant or remote radio. Whether your wall is reinforced concrete or a steel structure column, we can match the most suitable installation solution and arm length.

Unsure? Don't know?

Not sure whether your wall can support the cantilever load? Don't know how long the cantilever arm needs to be to cover your workstation? No problem. Just tell us: your wall type and thickness, your maximum lifting capacity, and the working area radius to be covered. Our engineers will provide you with an accurate quote and installation drawings within 24 hours. Click the button below or contact us via WhatsApp/email to get your customized solution.

💡 Tip: We offer free selection consulting. Even if you are unsure about specific parameters, feel free to describe your wall conditions and workstation layout, and we will calculate for you.

[1] Assembly Lines – Lifting and positioning components onto workstations with electric hoist for repetitive tasks.

[2] Loading Bays – Assisting in loading/unloading heavy goods from trucks near the bay door.

[3] Machine Shops – Serving individual lathes, mills, or presses with dedicated lifting coverage.

[4] Warehouses – Moving heavy items from shelves or pallets along the wall.

[5] Maintenance Areas – Hoisting motors, pumps, or spare parts for repair.

[1] Space-Saving – No floor‑standing column, frees up valuable floor space.

[2] Electric Hoist Efficiency – Faster lifting and lowering compared to manual chain hoists.

[3] Smooth Rotation – Electric or manual rotation up to 180° or 360° depending on model.

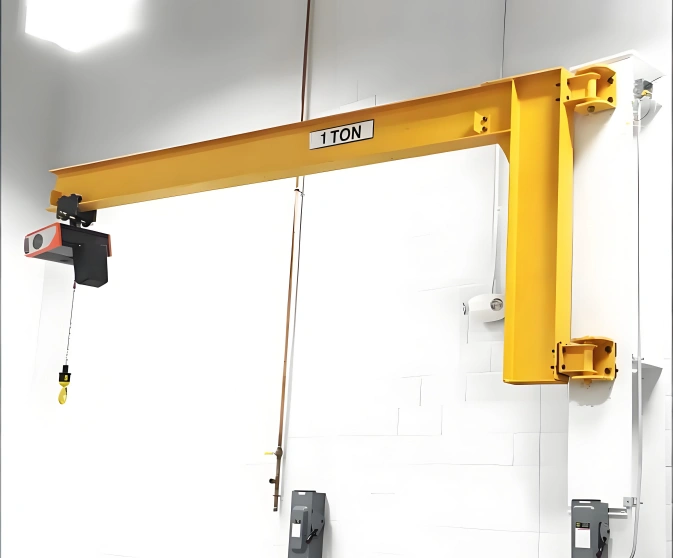

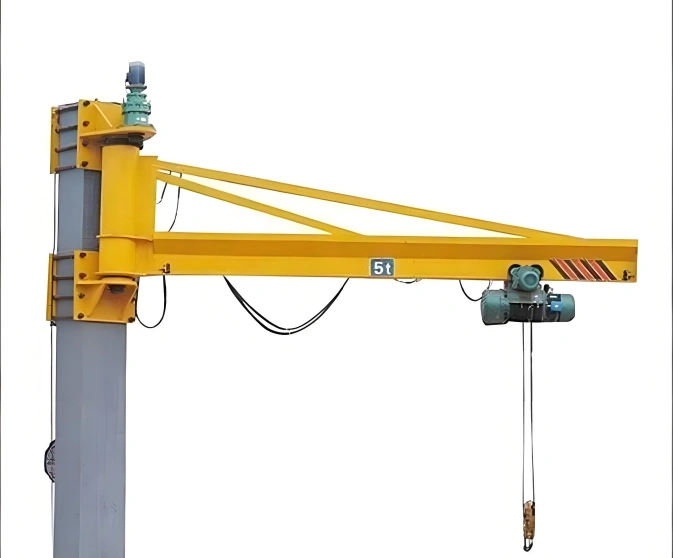

[4] Easy Installation – Mounts directly to existing building columns or reinforced walls.

[5] Low Maintenance – Sealed electric hoist and durable bearings reduce downtime.
