Crane Cabin

Authentication mark:

This crane cabin is mainly used in steel mills, port terminals, and construction sites.

Capacity:

Lifting Height:

Span:

Voltage/Hertz:

Working Class:

Get A Free Quote

Introduction

Application Scenario

Advantages

Structural Diagram And Parameter Table

INTRODUCTION

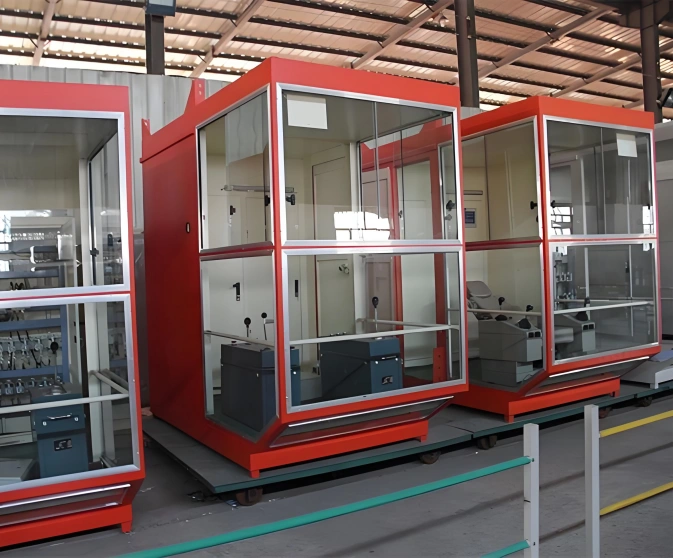

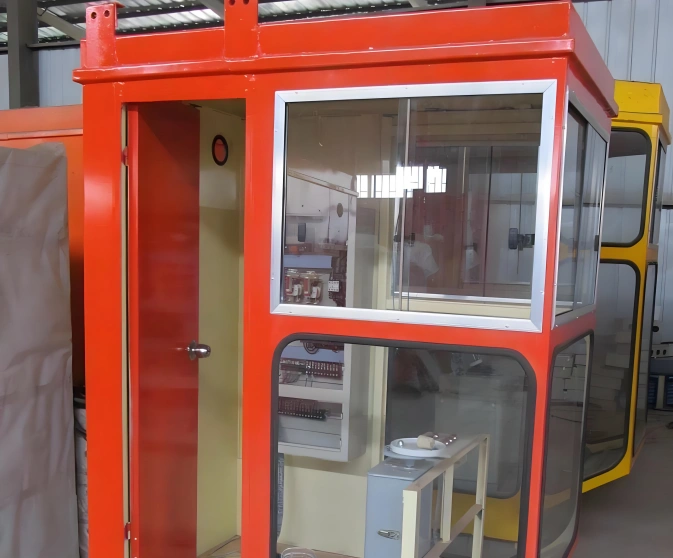

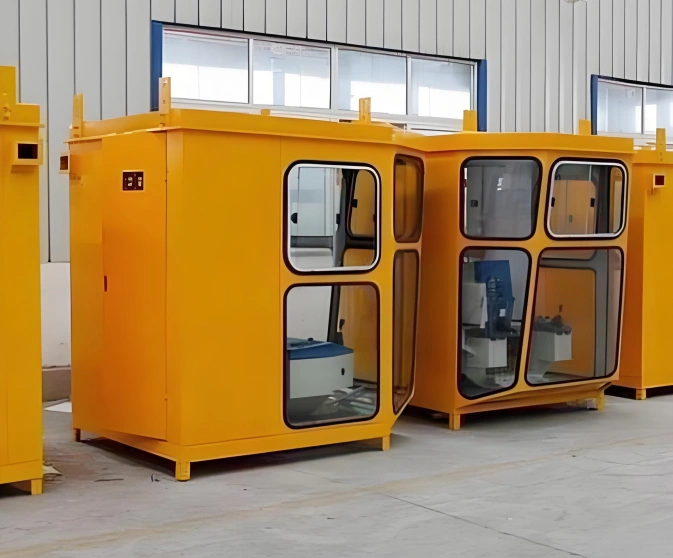

Nucleon Brand Crane Operator Cabin design fulfils all basic requirements for crane operator's safety in difficult, heavy duty operation, reliable safety and protection devices, comfortable operating environment and optimal view lines in order to facilitate the crane operator to work more efficient and with an improved quality in continuous operation as much as possible. Glasses are composed by safety glass, crane cabin can be equipped with chair with lever controllers for various cranes according to clients request to create an optimal working environment.

APPLICATION SCENARIO

[1] Overhead crane operation – Mounted under the crane bridge, allowing operator to view load directly from above.

[2] Gantry crane and ship-to-shore crane – Elevated cab providing unobstructed view of containers and yard area.

[3] Tower crane construction sites – Cab positioned high on the mast for panoramic visibility.

[4] Steel mill and heavy industry – Heat-resistant and dust-proof cabin protecting operator from harsh conditions.

[5] Port and terminal operations – Corrosion‑resistant cabin with AC and filtered air for coastal environments.

ADVANTAGES

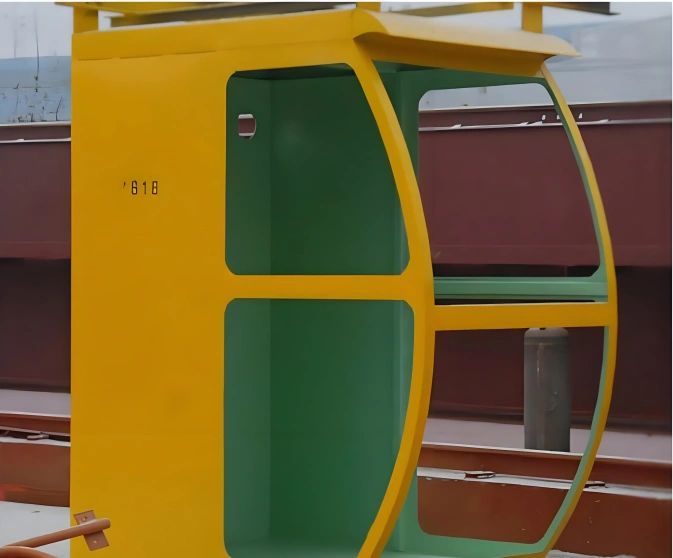

1.Using the advanced techniques of welding and manufacturing, the appearance of the cabins are flat and clean. All the doors and windows are well sealed.

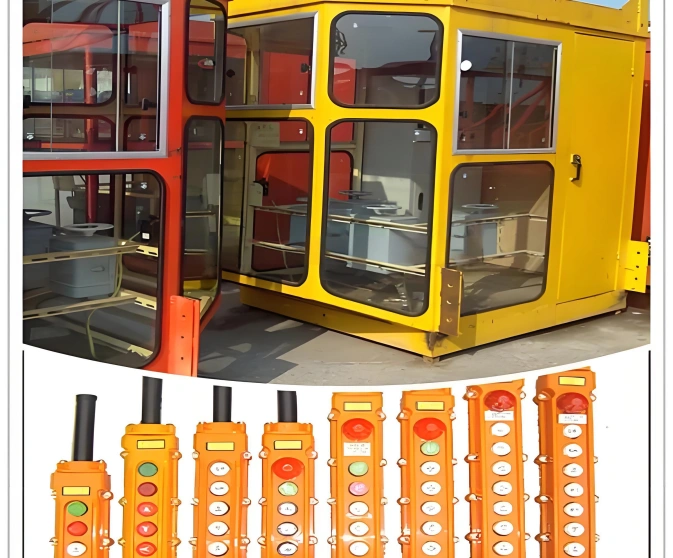

2.The Nucleon Brand Crane Operator Cabin can be additionally equipped with platform,hitch,single-layer fitment,insulating layer,air conditioner,linked console,button box,controller,foot switch and so on. The electric equipment,control system and operational system in the cab are completely provided

3.Crane Operation Cabin are developed by us on the basis of the human engineering principle. They have well safety and protection devices, comfortable operating environment, and an uncrowded view. Using the advanced welding and manufacture technics, the appearances of the cabins are flat and clean. All the doors and windows are well sealed and shockproof.

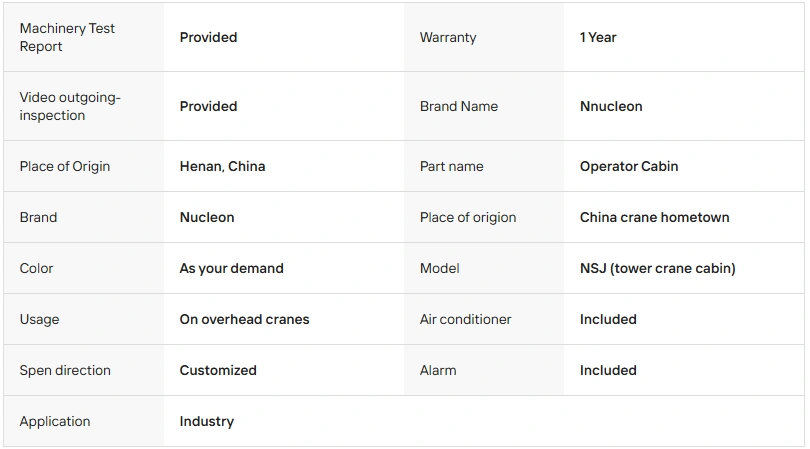

STRUCTURAL DIAGRAM AND PARAMETER TABLE

Six core advantages

Full Scenario Coverage

Nucleon covers over 20 product categories including ladle cranes, multi-purpose cranes, intelligent cranes, overhead/portal cranes, RTG, RMG, deck cranes, portal cranes, girder launchers, yacht cranes, KBK, and jib cranes. From steel smelting to port handling, bridge construction to ship equipment, Nucleon provides one-stop lifting solutions. Whether standard models or extreme-condition customizations, Nucleon possesses mature technical expertise and proven track records, saving customers from dealing with multiple suppliers.

Military-Grade Quality Standards

We use high-strength steel from Baosteel/Ansteel for key structural components, with 100% NDT inspection and one-clamp CNC gantry machining. Every machine undergoes 120% dynamic load and 125% static load tests before delivery, with continuous operation verification under extreme conditions. Even in 24/7 continuous casting plants, -40°C arctic ports, or high-temperature humid ship cabins, our cranes maintain millimeter-level precision and zero-drift stability—quality that stands the test of time.

Extended Longevity & Low Maintenance Cost

Our main girders are FEA-optimized and double-submerged arc welded, with a design life of ≥30 years. Key bearings are lifetime lubrication-free, and hardened travel wheels extend wear cycles by 3 times. Core components feature modular quick-change interfaces with spare parts commonality exceeding 80%. Annual maintenance costs are reduced by 40%~60%, saving millions in lifecycle operating expenses — truly "invest once, benefit long-term."

Energy Efficiency Leader

Our entire series comes standard with IE5 permanent magnet synchronous motors + energy feedback VFD drives, achieving 25%~35% comprehensive energy savings. Single-motor operation under light loads and adaptive speed control reduce electrical waste by over 30%. High-strength steel lightweight design cuts deadweight by 15%~20%, lowering workshop load requirements. A single ladle crane station saves over RMB 150,000 in electricity costs annually, helping customers achieve green and low-carbon production.

Ultimate Safety Redundancy Design

Our hoisting mechanism comes standard with dual brakes + mechanical overspeed switch + triple limit switches, featuring multiple redundant interlocks to prevent load dropping and over-traveling. Large products use box girder torsion-resistant structures, remaining stable even in level 8 gusty winds. Optional intelligent safety monitoring systems detect anomalies in load, skew, wind speed, etc., with automatic alarms and shutdowns. Overall safety redundancy coefficient > 2.0, maintaining zero crane safety incidents for many consecutive years.

Deep Customization & Full Lifecycle Service

We provide complete front-end support from site survey and mechanical simulation to civil review, delivering custom drawings within 2 weeks, with non-standard lead times only 5~7 days longer than standard products. We establish lifelong digital dossiers for customers, warning of end-of-life components 3 months in advance. Our full lifecycle services cover installation training, regular inspections, and remote O&M. With customer repeat purchase rates exceeding 85% for five consecutive years, we are a trustworthy long-term partner.
