We often receive inquiries from overseas buyers and customers who are looking for reliable lifting equipment, especially those with limited factory space and tight budget for infrastructure upgrades. For these customers, we always recommend using a semi gantry crane.
Many friends who are new to lifting equipment always confuse it with overhead cranes and gantry cranes, unable to distinguish the differences between the three, and do not know what scenarios semi gantry cranes are suitable for.
This article will explain in the simplest terms what a semi gantry crane is.
Definition of Semi gantry Crane
Semi gantry Crane is a lightweight lifting equipment that resembles both overhead crane and gantry crane. It belongs to a branch of gantry crane and is a practical model designed for factories and warehouses with limited space and budget.

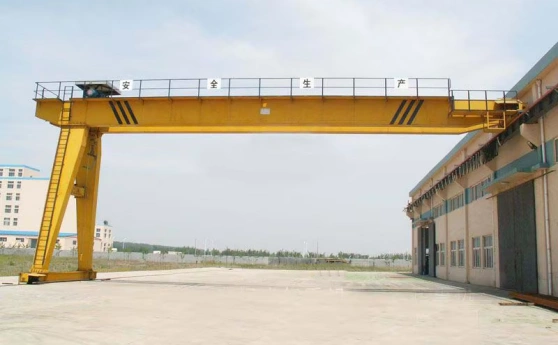

Its structure is easy to identify: one side is supported by the factory wall/steel column, and it walks along the wall track; On the other side, it lands with a support leg and ground track, without the double-sided landing bracket like a full gantry crane. The overall shape is lighter and the installation is more convenient.
The difference between semi gantry crane,overhead crane, and full gantry crane
Many people easily confuse these three devices, but in fact, by comparing their structure and site requirements, the differences will be particularly obvious.
|
Crane Type |
Core Structure Features | Site Requirements | Cost & Installation | Ideal Applications |
|
Fully mounted on top running beams under the factory roof, entire unit suspended with no ground support legs |
Extremely high requirements for building structure; must have dedicated heavy-duty roof beams, mostly not suitable for old workshops without pre-built support structures |
Relatively high equipment cost; requires roof structure modification, complex construction, long installation period, and high overall installation cost |
Large-scale standardized new factories, indoor heavy-duty lifting tasks; not fit for old workshops or small spaces |
|
Double-sided ground support legs, equipped with a complete set of ground rails, fully self-supported |
Takes up a large ground area, needs wide and flat sites; will heavily occupy working and storage space in small indoor areas |
High material consumption and equipment cost; strict ground foundation requirements, large installation footprint, and high overall investment |
Open-air yards, ports, large outdoor processing areas and other wide sites; very low cost-effectiveness for indoor use |
|
One side supported by factory walls/steel columns and runs along wall-mounted rails, one side with a single ground support leg, lightweight and compact structure |
Low requirements for building structure; only needs basic load-bearing capacity on one side wall/steel column, suitable for both old workshops and small confined spaces |
Affordable equipment cost; no large-scale factory modification or deep ground excavation needed, fast and easy installation, short construction period, and excellent cost performance |
Small and medium-sized workshops, compact warehouses, indoor and outdoor dual-purpose lifting tasks, fits all kinds of confined spaces |
Simply put, the semi gantry crane takes advantage of the advantages of the first two devices, avoids their shortcomings, and is most suitable for small space and low-cost lifting needs. This is also the reason why it has always been popular among foreign trade lifting equipment.
The core advantages of semi gantry cranes
1. Small footprint
This is the core advantage of the semi gantry crane, which relies on the existing building structure on one side without occupying the ground passage. The stacking of goods in the warehouse and production line operations in the workshop are basically not affected, making it particularly suitable for narrow and compact sites.
2. Easy installation
Unlike gantry cranes, which require rebuilding the top load-bearing structure or digging deep into the ground as a foundation, bridge cranes have a short construction period and can be used immediately after installation, without delaying the normal operation of factories and warehouses. After overseas customers purchase, on-site installation and debugging are also particularly worry free.
3. Simple operation and high security
Most daily operations are carried out using wireless remote control or ground controllers, without the need for a dedicated person to guard the cab. Novices can quickly learn the operation process through simple training. It comes with basic safety configurations such as overload protection and limit collision prevention, making lifting heavy objects more secure.
4. Widely applicable scenarios
Whether it's lifting parts in the factory workshop, loading and unloading goods in the warehouse, pallet transfer, or temporary lifting operations in outdoor areas, the semi gantry crane is capable of handling them. The lifting capacity can be customized according to the needs of conventional heavy objects ranging from 1 ton to about 20 tons.
What scenarios is the semi gantry crane suitable for?
1. The factory/warehouse space is not large and I don't want to occupy too much workspace;
2. The existing factory building is old and lacks supporting top load-bearing beams, making it impossible to install bridge cranes;
3. The procurement budget is limited, and we want lifting equipment with high cost-effectiveness and low maintenance costs in the later stage;
4. Lightweight and medium-sized lifting equipment with high flexibility, suitable for both indoor and outdoor use.
In conclusion
What is a semi gantry crane？ In summary, it is a lifting equipment designed for practicality and small spaces. It has no complex structure or inflated price, and can effectively solve the problem of heavy object handling in factories and warehouses.
If your venue is limited and your budget is limited, and you are looking for a useful, durable, and easy to install lifting equipment, a semi gantry crane is definitely worth considering as the top priority.
If you want to customize a suitable semi gantry crane according to your site size and lifting weight, you can contact us at any time to obtain a free selection plan and quotation.
