Overhead crane is the core equipment for industrial material handling, and the selection of single girder and double girder models is crucial, directly affecting operational efficiency, operating costs, and site adaptability. Practitioners and buyers in industries such as mechanical manufacturing and metallurgy can improve handling efficiency by selecting the right machine model, while choosing the wrong one can easily result in low operational efficiency and additional cost increases.

This article will introduce the differences between the two from the aspects of design, performance, scenario, cost, and maintenance, hoping to help buyers choose.

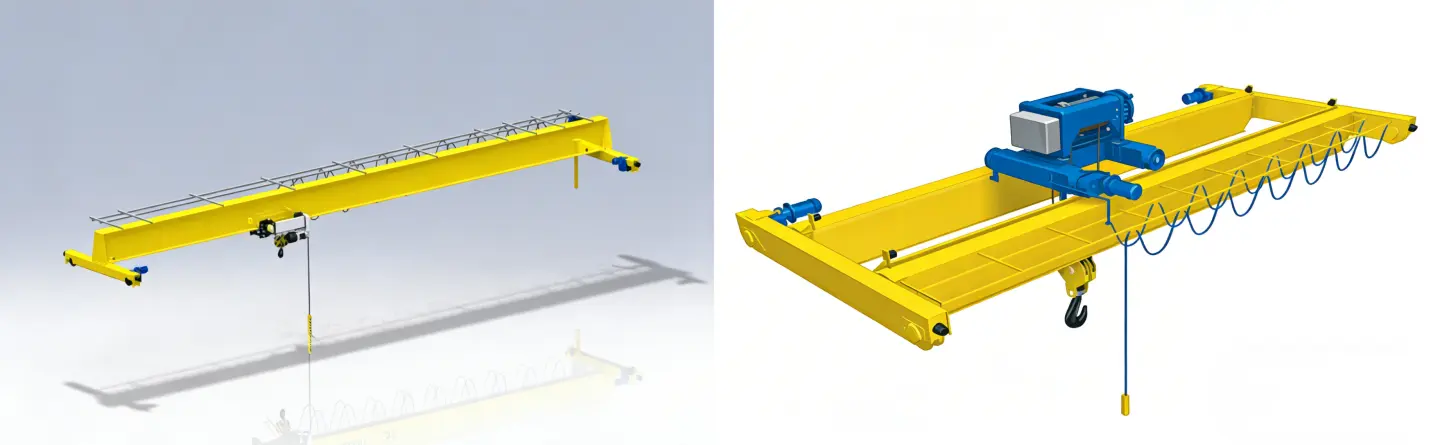

Core design and structural differences

The single girder overhead crane adopts a single main girder design, with the main girder directly erected on both side end beams. The lifting trolley runs along the lower flange of the main girder, and the overall structure is simple and compact. The body weight is lighter, and the building load-bearing requirements for the factory are lower, making it more suitable for working environments with limited space.

The double girder overhead crane is equipped with two main girders, which are connected by end beams to form a stable frame structure. The lifting trolley is erected between the two main girders for operation, resulting in stronger overall stability and better load-bearing capacity of the equipment.

Applicable scenarios

The core principle of selecting a crane is to adapt the equipment to the usage scenario, and precise matching is necessary to maximize the value of the crane equipment.

Cost and post maintenance

The cost difference between single girder and double girder cranes in procurement, installation, maintenance and other aspects is also an important consideration factor for enterprise selection.

Initial procurement cost

The single girder overhead crane has a simple structure, uses less materials, and has a much lower procurement cost than double girder models of the same span. It is easier to install and construct, has a shorter installation cycle, and can effectively save installation and infrastructure costs. It is suitable for small and medium-sized enterprises with limited budgets.

Double girder overhead cranes require a professional construction team due to their complex structure, high material usage, higher procurement costs, and more complicated installation processes. The overall investment in procurement, installation, and infrastructure construction in the early stages is higher.

Post maintenance costs

The mechanical structure of a single girder crane is simple, with few daily maintenance points and low difficulty. Maintenance personnel do not require high professional skills, resulting in lower maintenance costs and higher maintenance efficiency in the later stage.

The structure of a double girder crane is complex and requires regular maintenance and upkeep by professional technicians, resulting in relatively higher maintenance costs in the later stages.

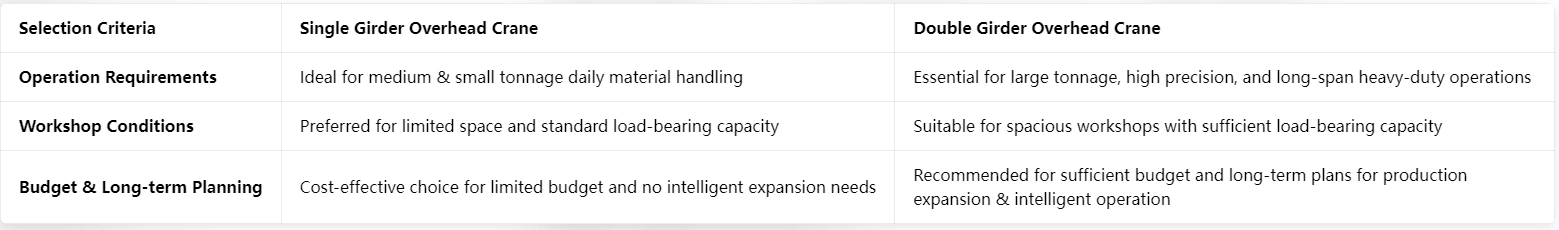

Core principles of selection

After reading the above comparison, many buyers may still have selection confusion. In fact, as long as they focus on the three core principles of "looking at demand, looking at venue, and looking at budget", they can quickly finalize the compatible models.

In conclusion

There is no absolute superiority or inferiority between single girder overhead cranes and double girder overhead cranes, only whether they are suitable. Choosing the right crane can not only improve operational efficiency, but also ensure production safety and control operating costs. I hope the introduction in this article can help make the most reasonable selection decision.

If you still have questions, you can consult professional crane manufacturing companies at any time for one-on-one professional selection guidance.
